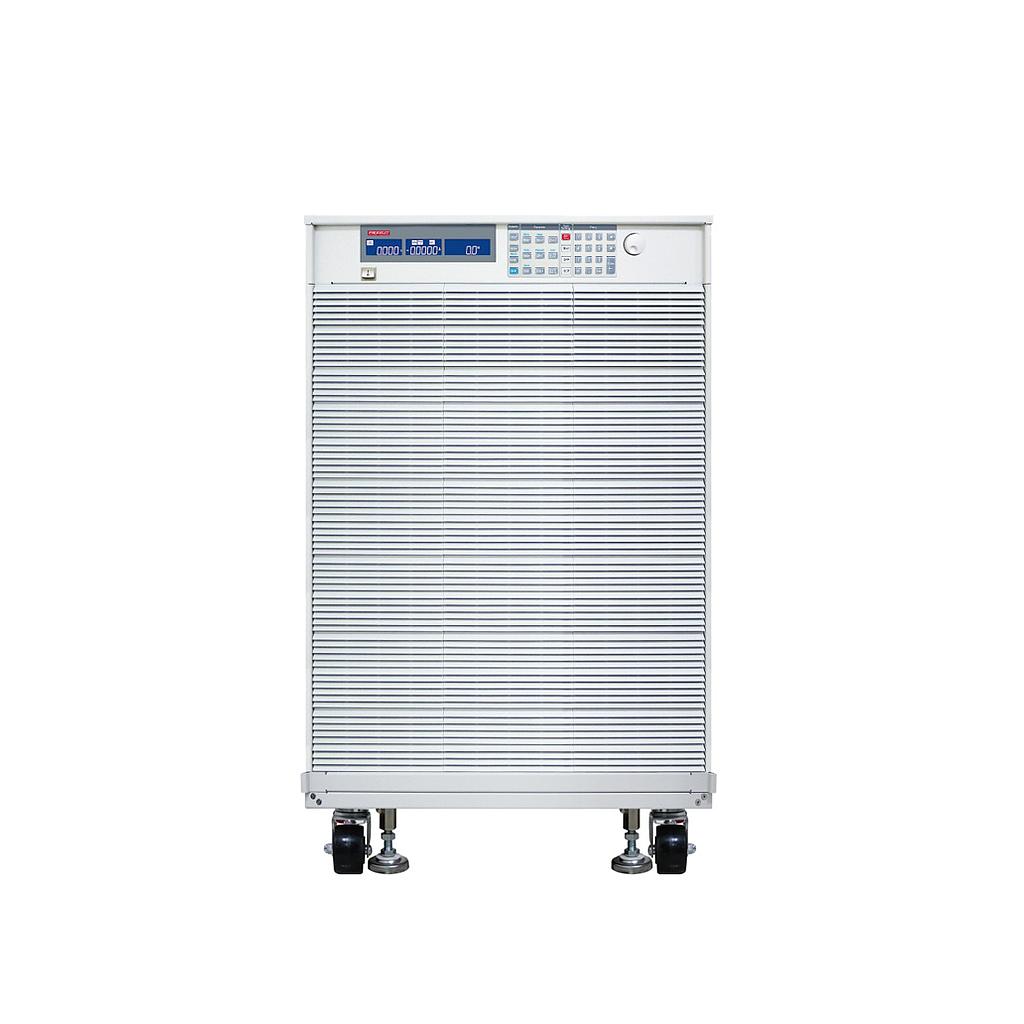

PRODIGIT 34325E Compact High Power DC Electronic Load (1250V, 125A, 25KW)

Power: 25KW

Current: 0 ~ 12.5A; 0 ~ 125A

Voltage: 0 ~ 1250V

Protections: Over Power Protection (OPP); Over Current Protection (OCP); Over Voltage Protection (OVP); Over Temp Protection (OTP)

Constant Current Mode Range: 12.5A; 125A

Constant Resistance Mode Range: 12000Ω~10Ω; 10Ω~0.501Ω

Constant Voltage Mode Range: 1250V

Constant Power Mode Range: 2500W; 25000W

Constant Voltage Mode + Constant Current Mode Range: 1250V; 125A

Constant Voltage Mode + Constant Power Mode Range: 1250V; 25000W

Dynamic Mode:

- Timing: 0.025~9.999 / 99.99 / 999.9 / 9999mS

- Current: 0~12.5A; 5~125A

Measurement

- Voltage Read Back Range (5 Digital): 0~250V; 250~1250V

- Current Read Back Range (5 Digital): 0~12.5A; 12.5~125A

- Power Read Back Range: 1000W; 25000W

Short Current: 125A

Power Consumption: 2350Wmax

Dimension (HxWxD): 1041x647x766mm

Weight: 280 kg

Temperature: 0~40℃

Datasheet
