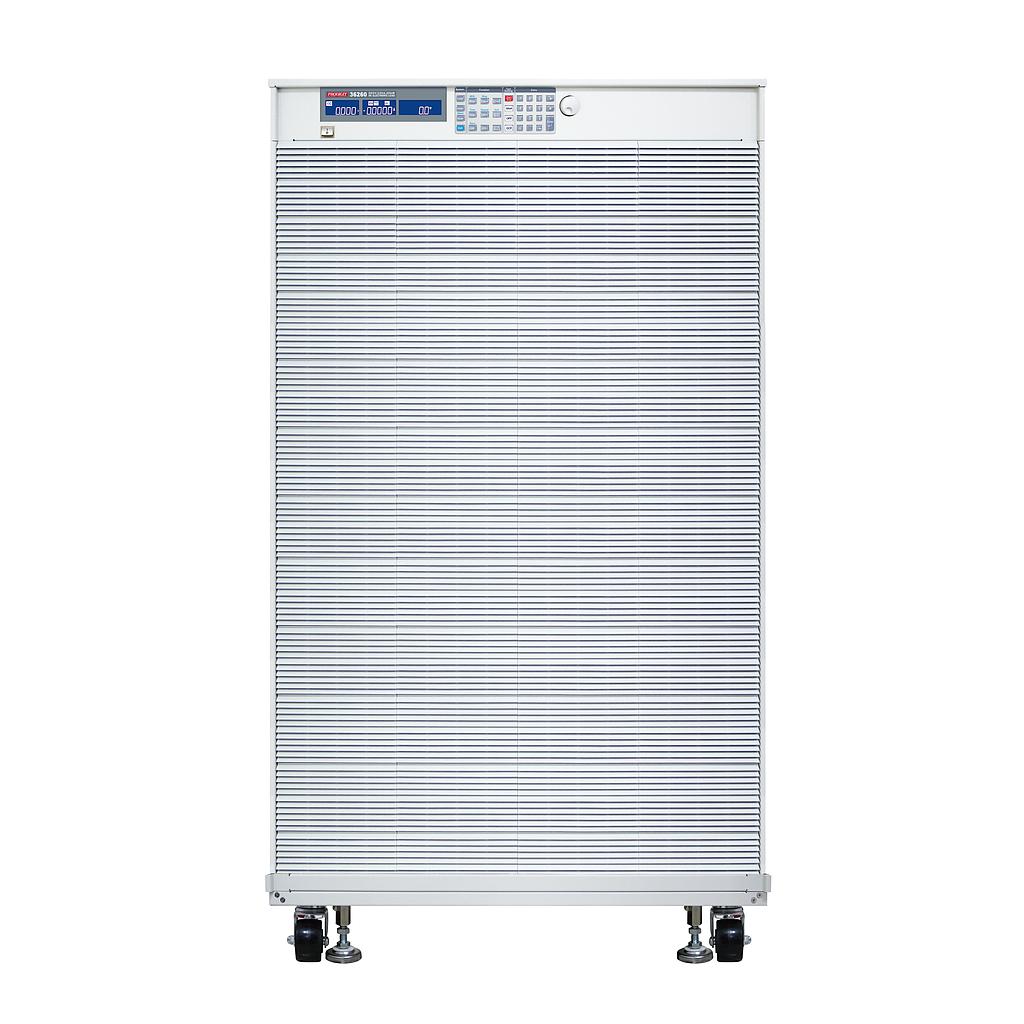

PRODIGIT 36260 Compact High Power DC Electronic Load (60KW, 24A/240A, 600V)

Power: 60KW
Current: 0~24A/0~240A
Voltage: 0~600V
Min.Operation Voltage: 10V@240A
Protections:
Over Power Protection (OPP): 105%
Over Current Protection (OCP): 105%
Over Voltage Protection (OVP): 105%
Over Temp Protection (OTP): Yes
CC mode:
Range: 0~24A/0~240A
Resolution: 0.4mA/4mA
Accuracy: ±0.1%
CR mode:
Range: 7500~2.5Ω/2.5~0.025Ω
Resolution: 6.66uS/41.7uΩ
Accuracy: ±0.2%
CV mode:
Range: 600V
Resolution: 10mV
Accuracy: ±0.05%
CP mode:
Range: 6KW/60KW
Resolution: 0.1W/1W
Accuracy: ±0.5%
Measurement mode (Load):
Voltage: 0 ~ 60V/60~600V, ±0.025%
Current : 0 ~ 24A/24~240A, ±0.1%
Power : 0~6KW/60KW, ±0.125%
Short circuit current: 240A
Dimension (HxWxD): 1508 x 853 x 766 mm
Weight: 630 kg
Input: 115/230Vac, 50/60Hz
Optional interface: GPIB, RS232, USB, LAN

Datasheet
