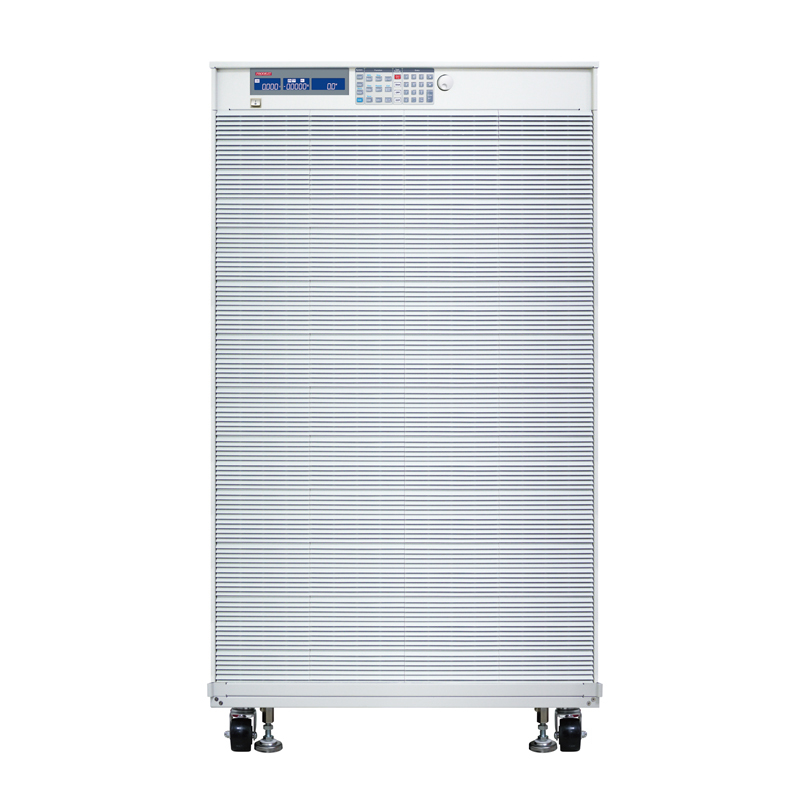

PRODIGIT 36260A Compact High Power DC Electronic Load (600V,240A,60KW)

Power: 60KW

Current: 0~24A/0~240A

Voltage: 0~600V

Min.Operation Voltage: 10V at 240A

Protections:

Over Power Protection (OPP): 105%

Over Current Protection (OCP): 105%

Over Voltage Protection (OVP): 105%

Over Temp Protection (OTP): Yes

CC mode:

Range: 0~24A/0~240A

Resolution: 0.4mA/4mA

Accuracy: ± (0.1% of Setting + 0.2% of Range)

CR mode:

Range: 7500~2.5Ω/2.5 ~0.0417Ω

Resolution: 6.66uS/41.7uΩ

Accuracy: ±0.2%

CV mode:

Range: 600V

Resolution: 10mV

Accuracy: ±0.05%

CP mode:

Range: 6KW/60KW

Resolution: 0.1W/1W

Accuracy: ±0.5%

Measurement mode (Load):

Voltage: 0 ~ 60V/60~600V, ±0.025%

Current : 0 ~ 24A/24~240A, ±0.1%

Power : 0~10KW/60KW, ±0.125%

Short circuit current: 240A

Dimension (HxWxD): 1508 x 853 x 766 mm

Weight: 630 kg

Optional interface: GPIB, RS232, USB, LAN
