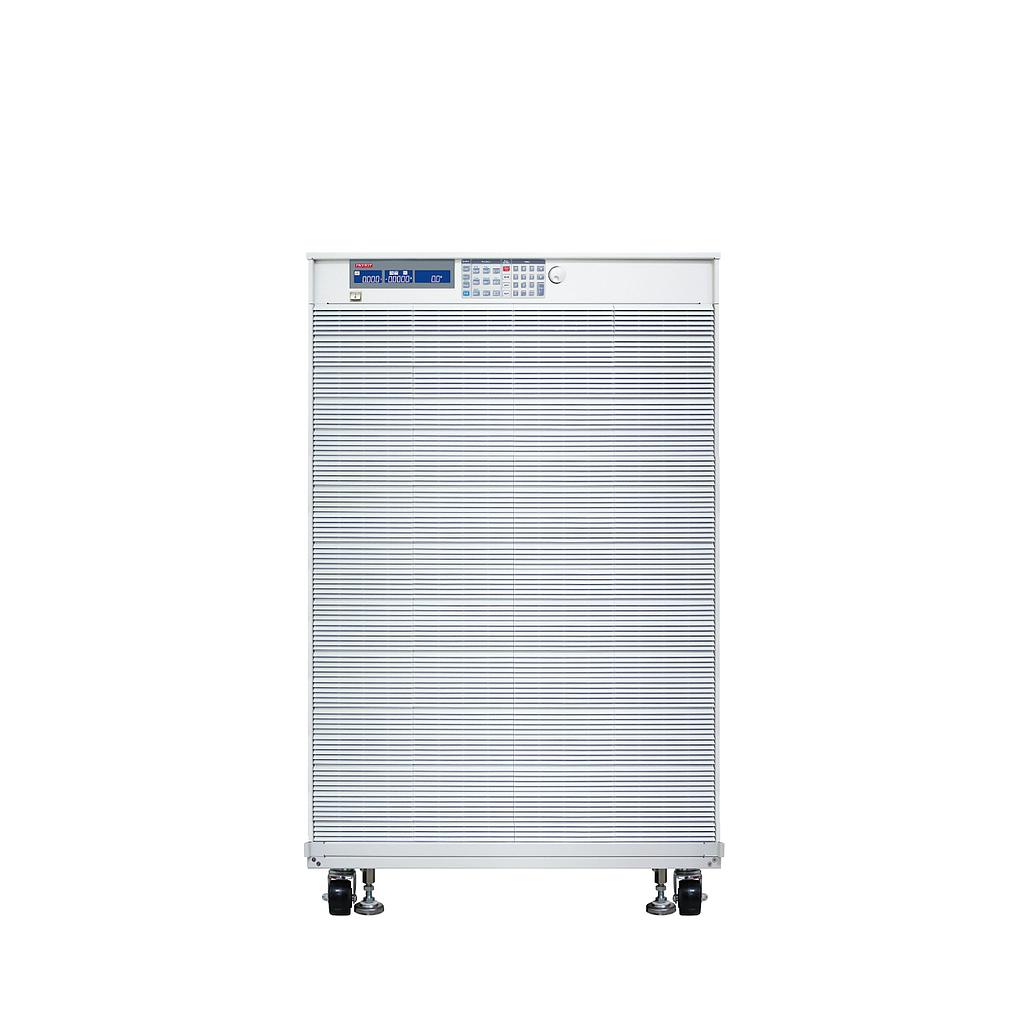

PRODIGIT 36350E Compact High Power DC Electronic Load (1250V, 250A, 50KW)

Power: 50KW

Current: 0~25A/0~250A

Voltage: 0~1250V

Protections:

Over Power Protection (OPP): 105%

Over Current Protection (OCP): 104%

Over Voltage Protection (OVP): 104%

Over Temp Protection (OTP): Yes

CC mode:

Range: 0~25A/0~250A

Resolution: 0.42mA/4.2mA

Accuracy: ±(0.1% of Setting + 0.2% of Range)

CR mode:

Range: 5712Ω ~ 4.76Ω/4.76Ω ~ 0.24Ω

Resolution: 3.5014μS/0.08mΩ

Accuracy: ±0.2%

CV modes:

Range: 1250V

Resolution: 20mV

Accuracy: ±0.05%

CP mode:

Range: 5000W/50000W

Resolution: 84mW/850mW

Accuracy: ±0.5%

Measurement mode (Load):

Voltage: 0 ~ 125V/125~1250V, ±0.025%

Current : 0 ~ 26.25A/26.25~250A, ±0.1%

Power : 10000W/50000W, ±0.125%

Short circuit current: 250A

Dimension (HxWxD): 1353 x 853 x 766mm

Weight: 510 kg

Optional interface: GPIB, RS284, USB, LAN
