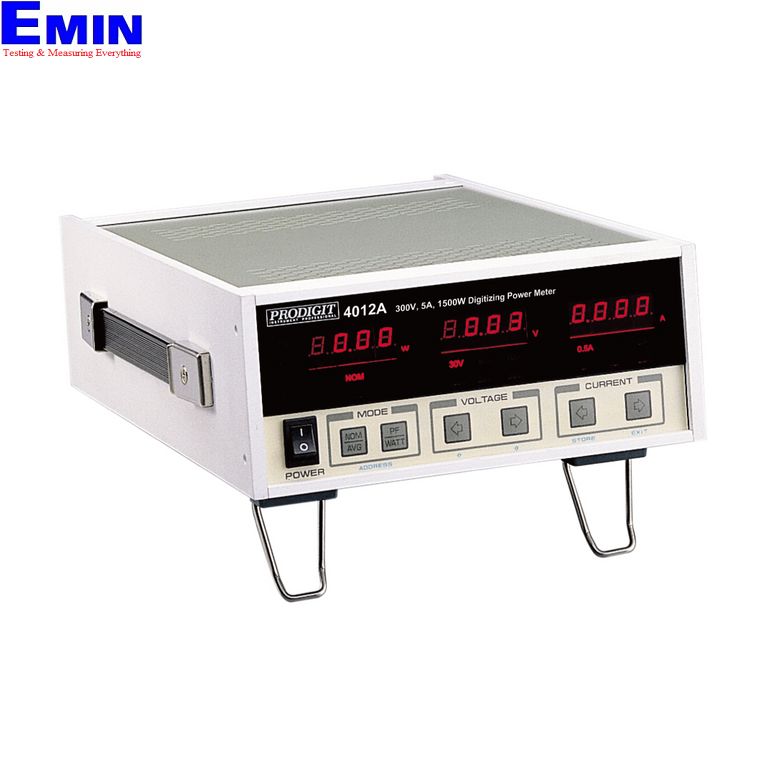

Prodigit 4012A Digitizing Power Meter GPIB

Manufacturer: Prodigit
Made in Taiwan
Model: 4012A
Warrantly: 12 months
Voltage:
Ranges, Auto-ranging up: 30, 60, 100, 150, 200, 300V
Impedance: 1MΩ on all Ranges
Maximum Allowable Input: 300Vrms AC, 450V DC or peak AC
Max. allowable Input(for 1 min): 1000Vpeak
Current:
Ranges, Auto-ranging up: 0.125, 0.25, 0.5, 1.25, 2.5, 5A
Impedance: 0.4Ω on 0.125, 0.25, 0.5A Range/0.04Ω on 1.25, 2.5, 5A Range
Maximum Allowable Input: 5Arms AC (10A peak), 5A DC
Max. allowable Input(for 1 min): 10A
AC power: 115/230 Vac
Weight: 4.5kg
Dimension: 221(W) x 88(H) x 325(D)mm
Options: 1M GPIB Cable, 2M GPIB Cable

Discontinued

Datasheet
