Display Type: Analog meter with large scale and mirror to reduce parallax
Power Supply: 2 × AAA 1.5V batteries
Dimensions: 179 × 118 × 50 mm
Weight: 400 g (excluding test leads and batteries)
DC Voltage: 0.25V – 2500V (8 ranges), ±3% FSD / ±4% FSD (1000V & 2500V)
AC Voltage: 10V – 2500V (6 ranges), ±4% FSD / ±5% FSD (1000V & 2500V), 40Hz–10kHz
DC Current: 50µA – 10A (6 ranges), ±3% FSD / ±4% FSD (10A), fuse protected
Resistance (Ω): X1, X10, X100, X1K, X10K – ±4% of scale length
Capacitance (C): Cx1: 50µF, Cx10: 500µF, Cx100: 5000µF, Cx1K & Cx10K (approximate values)
Battery Test: 1.2V, 2V, 3V, 3.6V (Good / ? / Bad indication)
Transistor Test: hFE 0–1000 (via dedicated socket, Ω×10 range)
Diode/LED Test: Supported (via dedicated socket, Ω×10 range)
Continuity Test: Buzzer sounds when <50Ω
dB Measurement: -22dB to +62dB (0dB at 600Ω, requires 0.047µF/400V series capacitor)
Overload Protection: Fuse (0.5A & 10A), suppressor, and diode
Accessories: 2 test leads, spare fuses, user manual
Safety Standard: IEC61010-1, CAT II 1000V / CAT III 500V

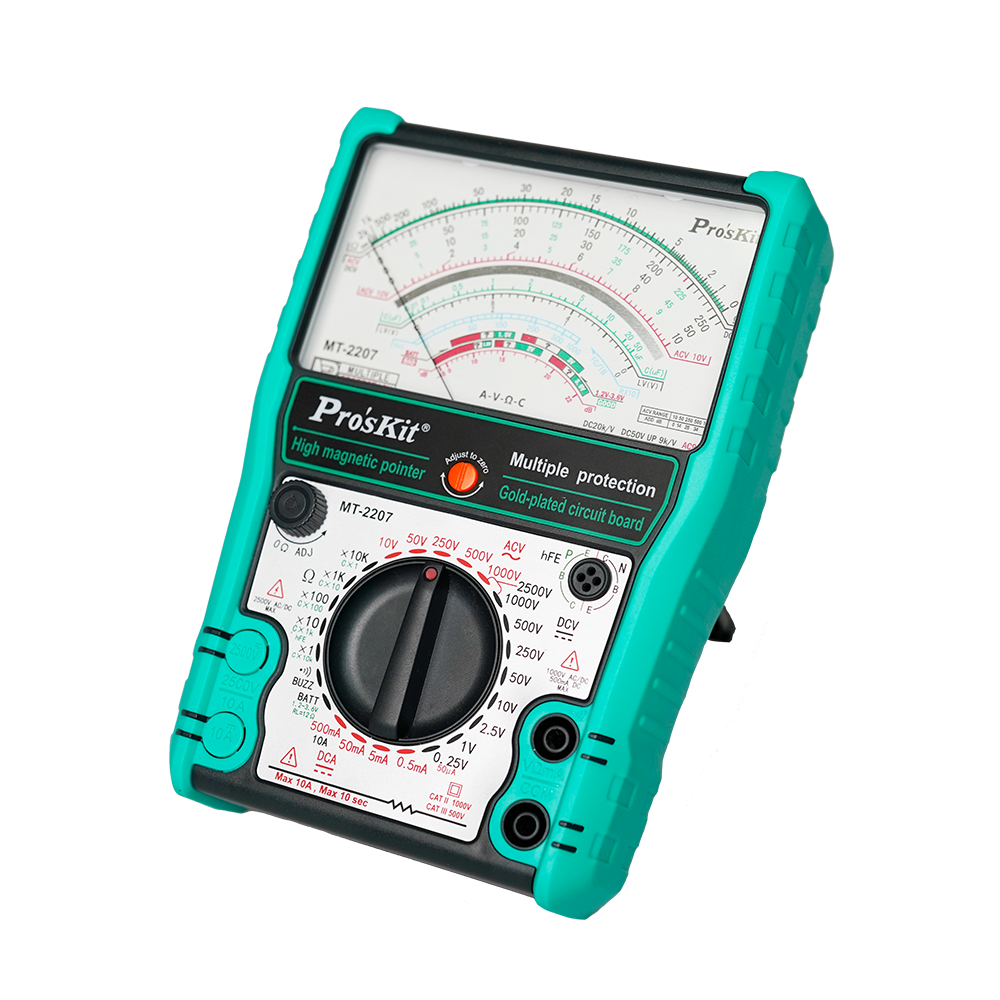

The Pro'sKit MT-2207 is a durable, accurate, and safe analog multimeter designed for versatile electrical measurements. It supports a wide range of functions including DC/AC voltage, DC current, resistance, capacitance, diode, transistor, LED testing, continuity check (with buzzer), and decibel (dB) measurement.
The MT-2207 features a special mirror-scale display with an anti-glare aluminum plate to reduce parallax error, along with a robust protective housing equipped with a tilt stand and convenient hanging hook. It is also built with intelligent protection systems such as fast-acting fuses, protection diodes, overvoltage protection, and misoperation protection circuits.
Ideal applications include laboratories, educational environments, workshops, and both residential and industrial uses where durability and high accuracy are required.
