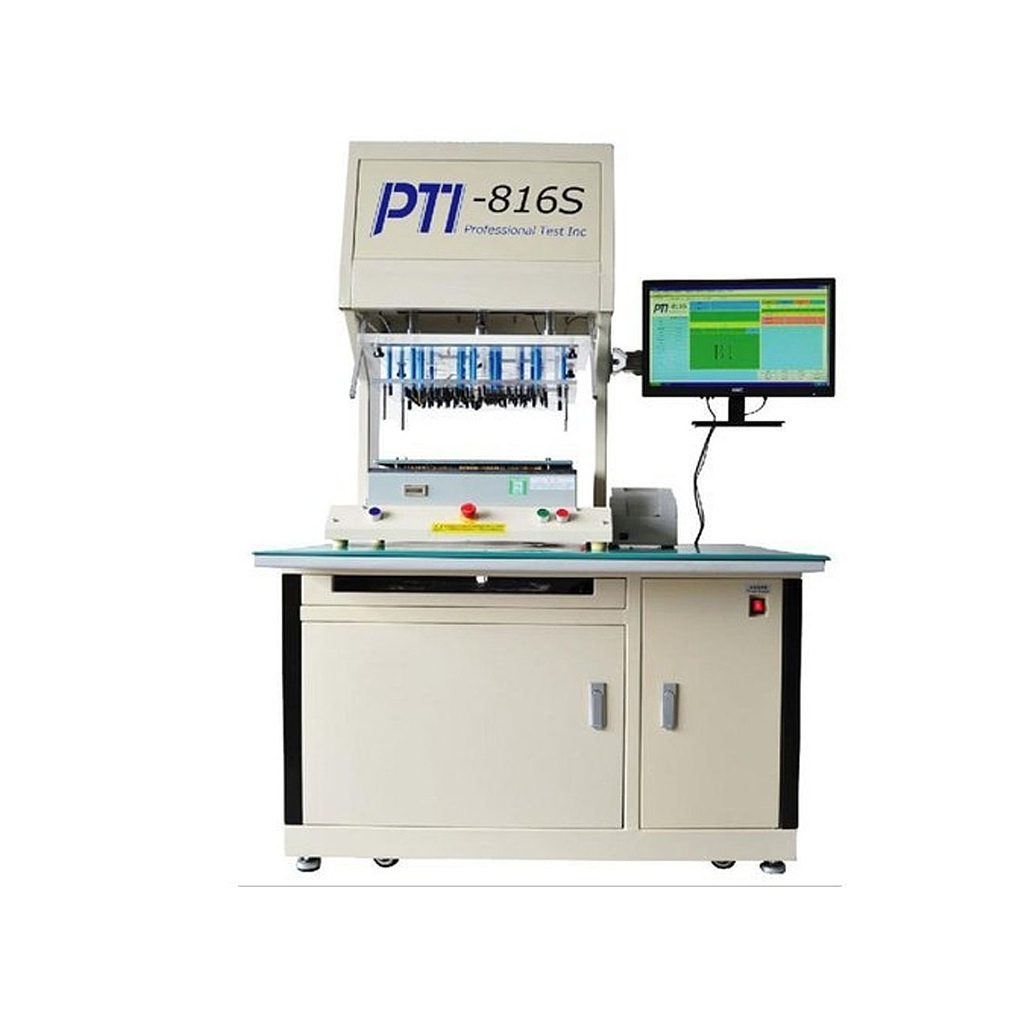

PTI PTI-816S In Circuit Tester

Test pin point: standard： 320 point

Large Mainframe: can expand to 4096 point

Test item ： maximum：300000setps

Test time: open/short circuit test：1000 point ≤1s（Typical DUT）

component： 0.5ms—30ms （Typical DUT）

Test range and conventional precision:

R： CC

L： A

CV

Phase

Phase

C： A

DC

Phase

DC current：(1uA- 1A) (1%- 5%）

DC voltage：(0-100v), (1%-5%)

(Diode / transistor test) Zener diode:（0-50v）

Guarding: Guarding point automatic selection, each test step 5 pionts

PCB size:: SizeA:380mm(W)×310mm(D)×100(H)

SizeB:450mm(W)×330mm(D)××100(H)

SizeB: 480mm(W)×330mm(D)××1000(H)

Optional：Custom client

Computer: Inter Pentium 4 and better

Monitor: LCD Monitor

Memory: 3.5’1.44MB Floppy disk/80GB HDD

Software system: Multilingual interface

Printer: Standard 76 mm needle printer

Other devices: Photoelectric protector

Option function: TESTJET: QTY 64pcs (Standard Configure)

Pneumatic : cylinder bore 100mm,cylinder stroke 200，maximum pressure：470kg/3Bar

cylinder bore 125mm,cylinder stroke 160，maximum pressure：735kg/6Bar

Air pressure：4-6kg/cm2，Air consumption：4Liter/Cycle

Power standard： AC100V-120V,200V-240V/50Hz-60Hz/350W

Size,and weight： 1000mm（L）*800mm（W）*1600mm（H), about 260kg

Utilize environment:Temperature: 0°C~40°C Humidity：20~80%

Option

1.SFIS(Shop-Floor Informalion System)

2.Bar code management and the remote control

3.Double press system

4.Good seal system
