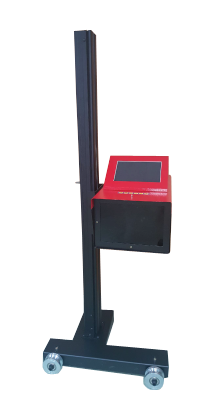

QROTECH QLT-801 Headlight Tester (1 m; 0~120,000 cd)

Measurement method: CMOS camera

Measurement items: High beam & low beam measurement

Measuring distance: 1 m

Luminous intensity: 0 ~ 120,000 cd

Deviation of optical axis:

Up: 0–350 mm / 10 m (0 ~ 2°)

Down: 0–525 mm / 10 m (0 ~ 3°)

Left: 0–525 mm / 10 m (0 ~ 3°)

Right: 0–525 mm / 10 m (0 ~ 3°)

Communication: RS232

Dimension: 635(W) × 580(L) × 1600(H) mm

Weight: 46 Kg

Power: AC 220V ± 10%, 50/60Hz

Option: Printer

5 million pixel CMOS camera measurement

High beam & low beam measurement

Halogen, xenon, LED measurement of motorcycle and vehicle

Convenient height adjustment

Smooth movement with solid lower structure

Camera image and line laser method

Aiming method by camera image and line laser
