Range (bar): 0 to 2
Resolution (bar): 0.0001
Vacuum: Yes
Units : bar, psi, Kg/cm2, KPa, MPa, mmHg, atm, mH2O, inHg, inH2O, ftH2O, cmH2O, mbar, mmH2O

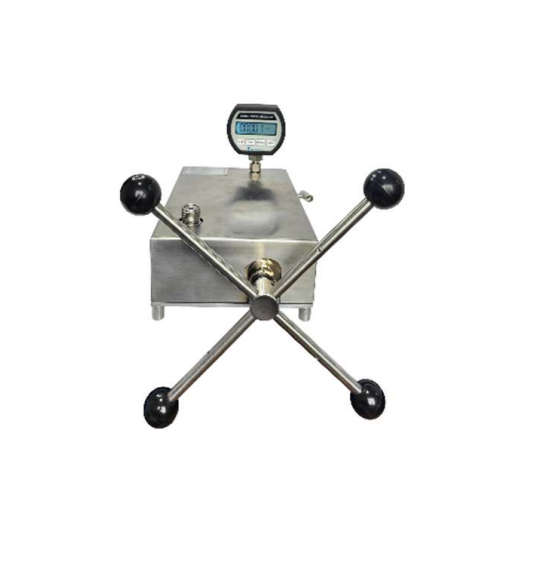

Hand pump range: CP-2 (-0.95 to 2 bar)
Accuracy : 0.1%F.S
Special Function: Min / Max / ZERO
Temperature range: 0 to 50°C
Pressure media: all liquid and gas compatible with SS316 (non-corrosive)
Pressure unit: bar, psi, Kg/cm2, KPa, MPa, mmHg, atm, mH2O, inHg, inH2O, ftH2O, cmH2O, mbar, mmH2O
Storage temperature: -20°C to 70°C
Display: 7 segment large LCD display
Backlight: white LED backlight
Character height in display: 15 mm height
Sealing: IP 67
Over pressure: 120%FS up to 40 bar
Over pressure: 105%FS above 40 bar
Pressure connection: 1/4" BSP male for all ranges
Power supply: 4 × AA size alkaline battery
Physical Dimension: 105 × 110 × 50 (L × B × H) in mm
Casing material: ABS Plastic
Battery backup: 2000 hours (STD)
Battery backup: 400 hours (for LA, HA)
Progress Bar: 0 to 100% (FS for pressure alone)
Safety Standards: IEC 61000-4-2: Testing and measurement techniques – Electrostatic discharge immunity test
Safety Standards: IEC 61000-4-3: Testing and measurement techniques – Radiated, radio-frequency
