Effective measuring range (mm): 600
Max. measuring height (mm): 996 (change probe's direction)
Verticality of front (um) (after e-probe is amended): 6
Resolution (μm): 0.5
Accuracy (μm): E1=(3+L/500)
Max. Manual speed (mm/s): 400
Measuring force (N): 1.0-2.0
Power supply: 12V rechargeable battery pack (running time is 8h plus after recharge completed)
Total height (mm): 945
Weight (kg): 25
Repeatability: plane: 1.0μm. curve: 2.0μm
Product brief:

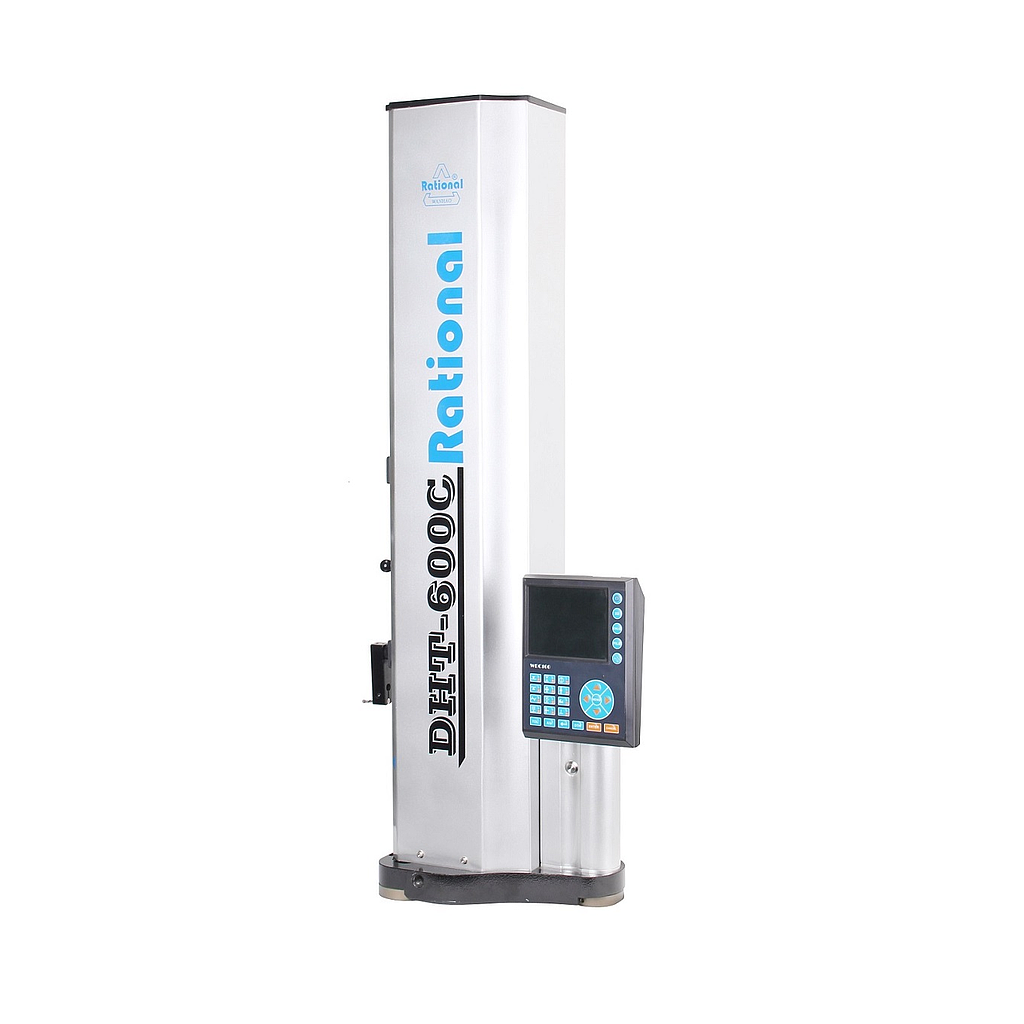

Height Measuring Instrument is a standing digital con-coordinate measuring machine based on precision machinery, modern sensor technique and electronic technology. It is widely used in precision machinery, hardware, plastic, etc.
It can be used to measure the distance between two planes, depth of hole, groove width, and diameter, center distance, maximum and minimum value of hole and groove. In addition, when configured with electronic probe, it is possible to measure verticality.
Features:
1. Air floatation in pedestal,which makes it convenient to measure.
2. Granite air floatation mechanical structure- high accuracy and small deformation by temperature difference.
3. Auto measuring- high efficiency,and high stability and reliability.
4. Verticality measuring is available for option.
