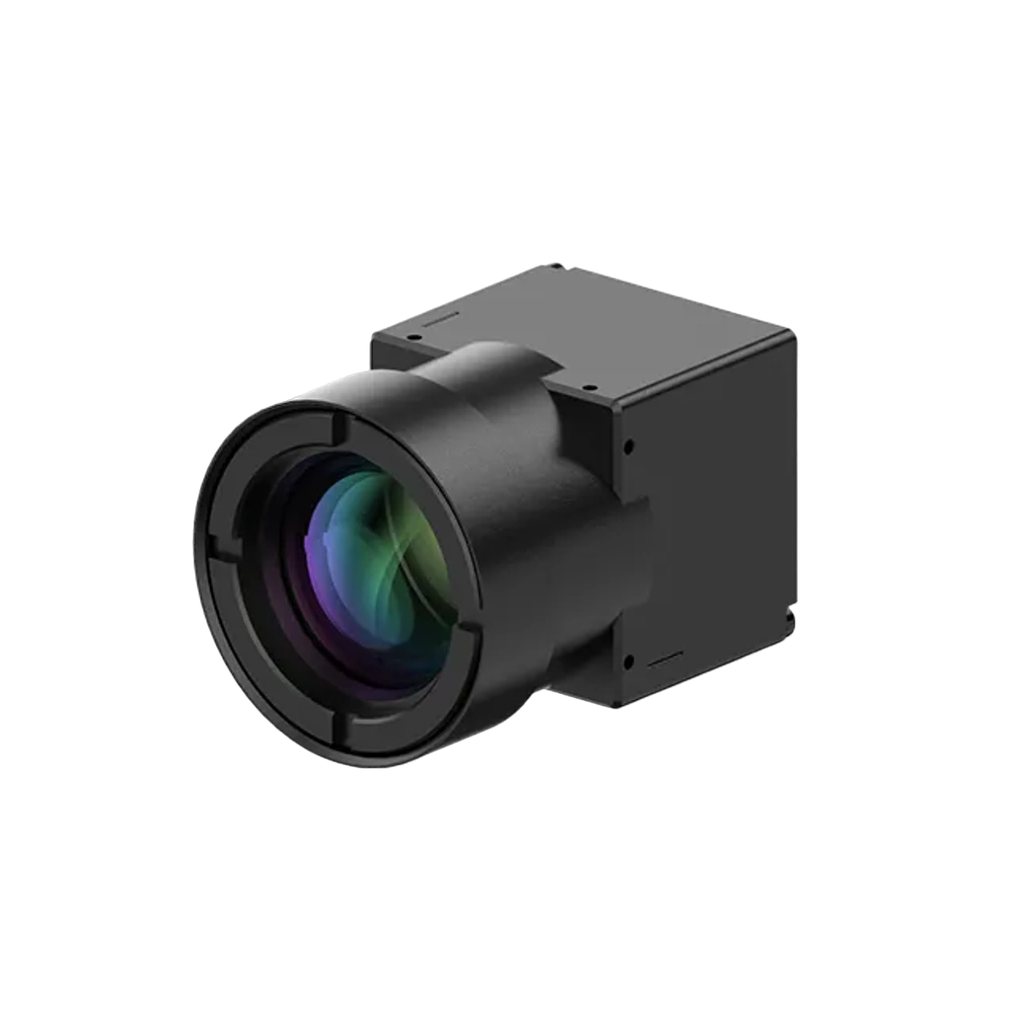

Performance Indicators
Detector Type: Uncooled VOx infrared detector
Resolution: 640×512
Frame Rate: 50Hz
Pixel Pitch: 12μm
Spectral Band: 8~14μm
NETD: ≤50mK at 25°C (≤40mK, optional)
Image Adjustment
Brightness/Contrast Adjustment: Manual/Automatic/Linear
Polarity: Black-hot/White-hot
Palette: Support
Reticle: Display/Blank/Move
Digital Zoom: 1.0~4.0× continuous zoom (step size: 0.1)
Image Processing: Scene-based non-uniformity correction, digital filtering noise reduction, and digital detail enhancement, Shutterless
Mirroring: Horizontal/Vertical/Diagonal
Power Supply
Power Supply Range (typical): 3.5~18V DC supported by user extension components, 4~5.5V DC
Typical Power Consumption at 25°C Without Extension: ＜0.6W
Power Protection: Overvoltage, undervoltage, and reverse connection supported by user extension components
Interface
Digital Video: BT.656/BT.1120/14Bit or 8Bit LVCMOS/LVDS
Analog Video: 1-channel PAL system
Serial Communication Interface: UART (3.3V)/RS232
Extension Components: MIPI/USB/Camera Link/Analog video/BT.656/LVDS
Physical Characteristics
Dimensions (Without lens and extension components): 26mm×26mm×19.2mm
Weight (3.2mm, without extension components): 20g±3g
Environment Adaptability
Operating Temperature: -40°C~+80°C
Storage Temperature: -45℃～+85℃
Humidity: 5 ~ 95%, non-condensing
Vibration: 6.06g, random vibration, all axes
Impact: 80g, 4ms, final peak sawtooth wave, three axes and six directions
