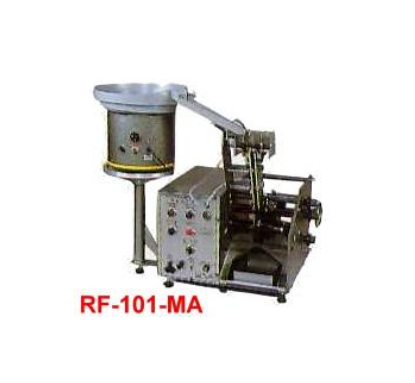

REN THANG RF-101-MA Loose Axial Lead Forming Machine

Body length: 3.8 - 20 mm

Body diameter: 2.3-8 mm

Shoulder: 1.2 min

Height: Fixed at 8mm or more

Lead Length: Adjustable

Support point: 2 ~ 3mm

Pitch: A + 2C

Wire diameter: 0.4-1.3 mm

Power: 110V/60Hz ; 220V/50Hz, upon your country.

Dimension: 1050(L), 600(W), 650(H) mm

Weight: (N.W.) 115 Kgs. (G.W. ) 150 Kgs

Performance: Min. 6,600 pieces / hour

Volume of Vibrant Bowl Feeder: 300~ 500 pieces at a time, depends on component's body.

Moving control: Manual rotation, stepping intermittent, Fully automatic, three different modes for choice.

RF-101-MA--- For Loose packed components only.

FEATURES:

MA type, targets for LOOSE parts, which are fed by VIBRANT BOWL FEEDER.

RF-101MA, forms and kinks leads into U shape with kinks. Kinks can be any shape upon customer's request.

Tailored / Custome die is available for any forming specification. Welcome to email drawing for our best solution for you.

Heavy duty and Powerful construction- Sustainable lifespan.

Ready-to-use setup - customers can use the machine right after receipt of it

OEM, DIP, PCBA Insertion line's most helpful equipment!
