Voltage Range: -6V~6V
Voltage Accuracy: ± 0.02% F.S
Voltage Resolution: 0.1mV
Current Range: 20A~500A…2000A
Current Accuracy: ± 0.02% F.S, three levels: 25%, 50%, 100%
Current Resolution: 0.1mA
Current start response time: 4ms (10%~90% F.S)
Current switching time: 10ms (-90%~90% F.S)
Min. Working Condition Simulation Interval: 10ms
Third-party device integration: Supports linkage of temperature box, MTV/MTS, and pressure sensor

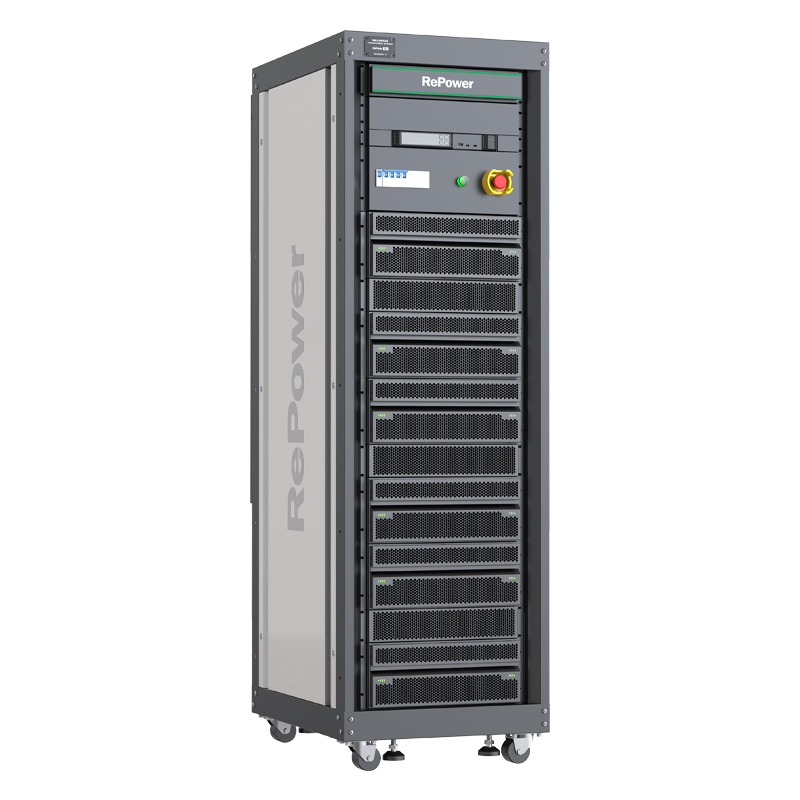

Cabinet size (WDH mm): 600x850x1030 / 600x800x1980
ADVANTAGES
Support current is divided into three levels: 25%, 50%, 100%
The four-quadrant scheme is optional and can be discharged to negative 6V
Support multi-channel charge and discharge curve comparison
Power factor value up to 0.99
Anti-reverse connection and data protection
Battery discharge and energy feedback efficiency ≥75%
Support 10ms working condition simulation test & pulse testing
Support clamp contact impedance monitoring, avoid safety problems caused by poor contact or oxidation of terminal
Supports the logical judgment function of specific parameter assignment
Cycle life test
Battery capacity test
Charging/discharging test
Temperature characteristic test
Charge retention test
Static/dynamic SOC test
High-speed working condition pulse test
DCIR test
APPLICATIONS
Applied in Li-ion battery, lead acid battery, nickel-cadmium battery testing and quality control, can realize the integration of charge and discharge data monitoring
