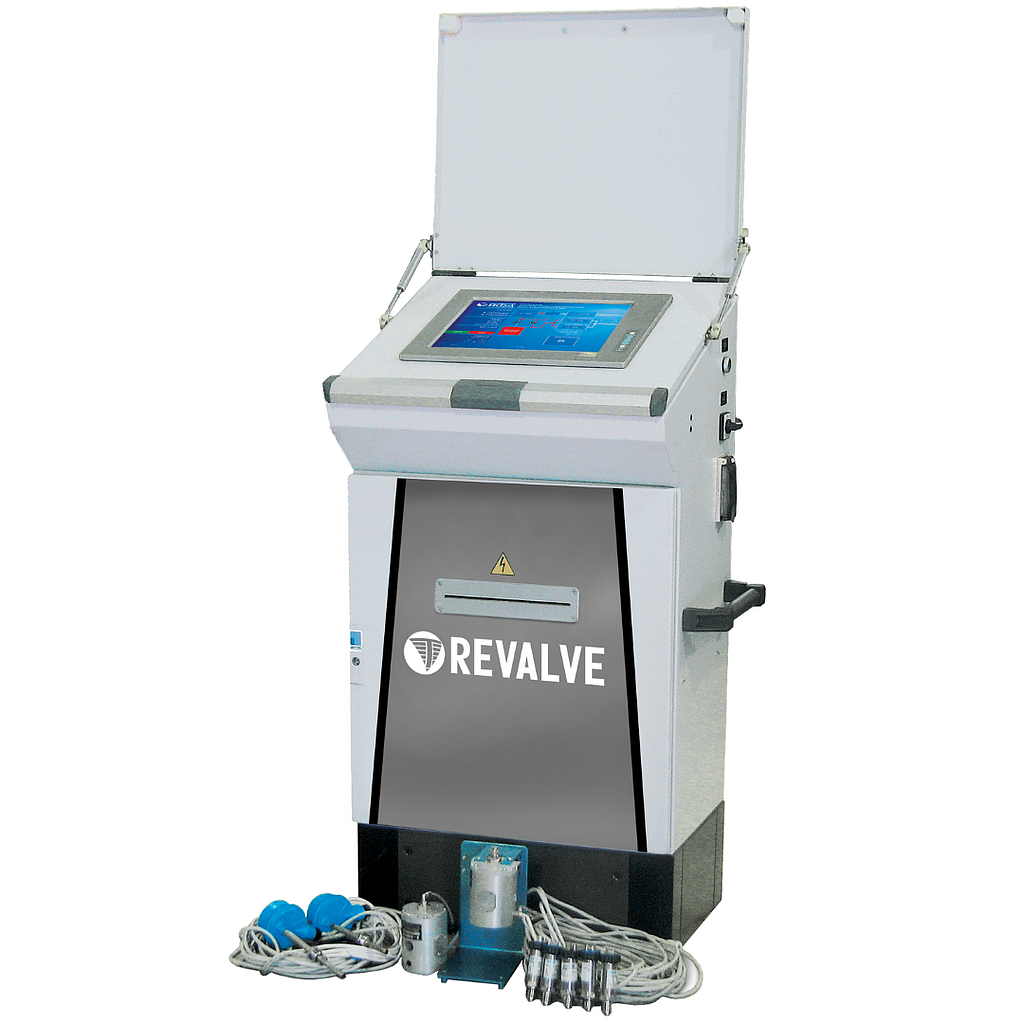

Revalve CRS-M Computer registration system

Specifications:

Operating medium: water, gas*

Maximum measured test pressure, bar (psi): 2500 (36250)

Maximum measured leakage volume for water/air, cm³/min (fl oz): 12/15 (0,4 / 0,5)

Reduced pressure measurement error, %: ±0,4

Reduced leakage measurement error, %: ±3,0

Test medium and surrounding air temperature measurement range, C° (F°): 0...+60 (+32...+140)

Absolute error of the temperature measurement, C° (F°): ±1 (±34)

Power supply, V/Hz: 230/50 (110/60)

Power consumption, kW: 0,6

Overall dimensions (LхWхH), mm (″): depending on system design
