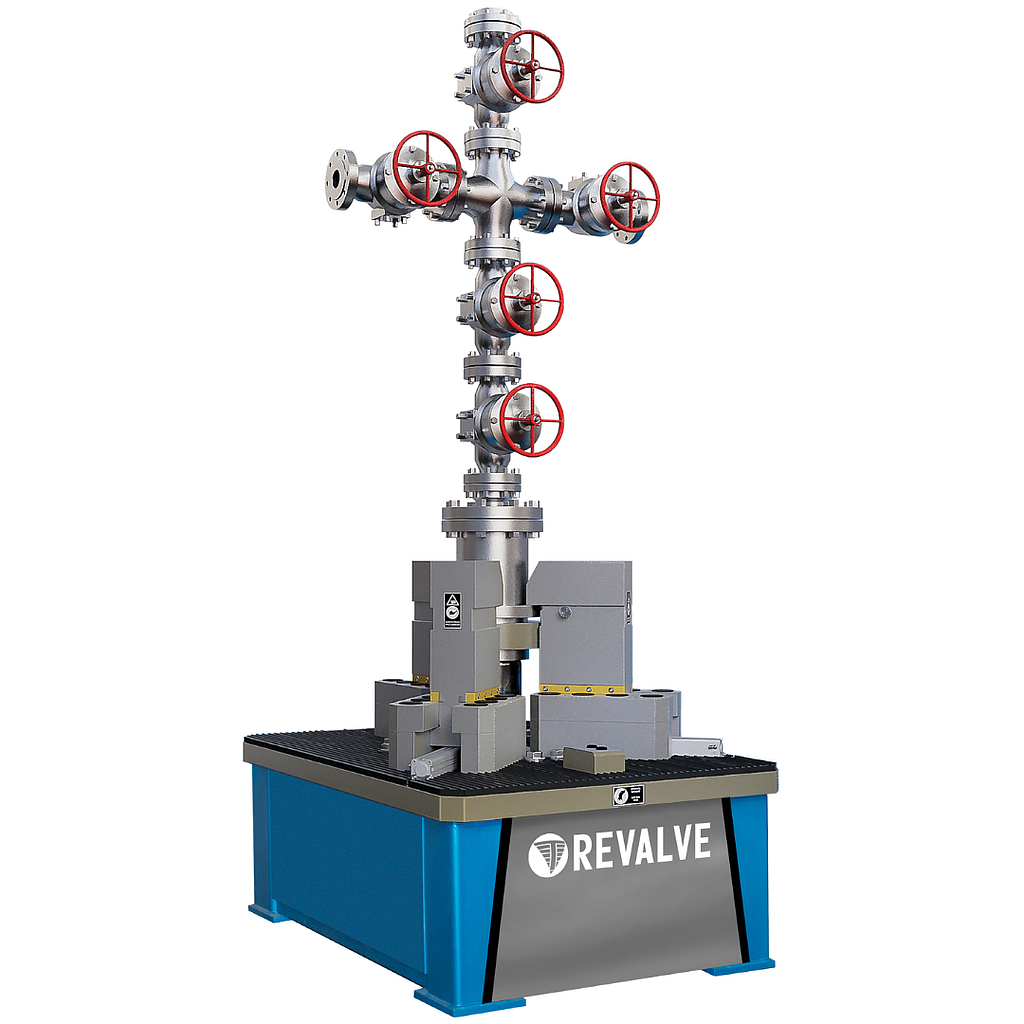

Revalve UNIT №5 Vertical test bench for wellhead equipment and blowout preventers

Name: Revalve UNIT №5 Vertical test bench for wellhead equipment and blowout preventers
Brand: Revalve

ModelUNIT №5

Contact

Quantity

Secure Checkout

Quality Engagement

Easy change and return

Delivery Available

Specifications:

Maximum clamping force, t: 700

Min./max. diameter of clamped flange, mm (″): 165/560 (550/705*)

Maximum pressure of the clamping system, bar (psi): 340 (4930)

Air pressure, supplied to pneumatic cylinders providing travel of the clamps, bar (psi): 4+2 (58+29)

Overall dimensions (LхWхH), mm (″): 1660х1220х1340 (66x49x53)

Weight, kg (bench): 3855
