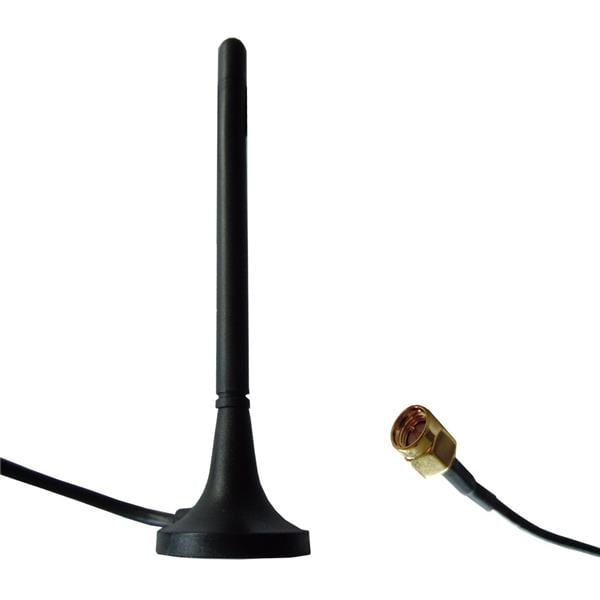

RF Solutions ANT-GSMSTUB4 Passive Antenna GSM Stubby +4dB Mag Mount SMA(M)

Name: RF Solutions ANT-GSMSTUB4 Passive Antenna GSM Stubby +4dB Mag Mount SMA(M)
Brand: RF Solutions

ModelANT-GSMSTUB4

Contact

Quantity

Secure Checkout

Quality Engagement

Easy change and return

Delivery Available

Gain: 4 dBi

VSWR: 1.8:1

Style: Straight with Base

Length: 113 mm

Diameter: 29 mm

Impedance: 50 Ohms

Cable Type: 2.5 M RG174

Application: Cellular Applications, Range Improvement

Cable Length: 2.5 m

Polarization: Vertical

Power Rating: 50 W

Mounting Style: Magnetic Mount

Number of Bands: 2 Band

Center Frequency: 900 MHz, 1.7 GHz, 1.8 GHz, 1.9 GHz, 2.2 GHz

Mechanical Style: Whip

Maximum Frequency: 2.22 GHz

Minimum Frequency: 870 MHz

Termination Style: Connector

Antenna Connector Type: SMA Male

Protocol - Cellular, NBIoT, LTE: 2G/3G/4G, Cellular (NBIoT, LTE), GSM, UMTS, DCS, PCS, GPRS
