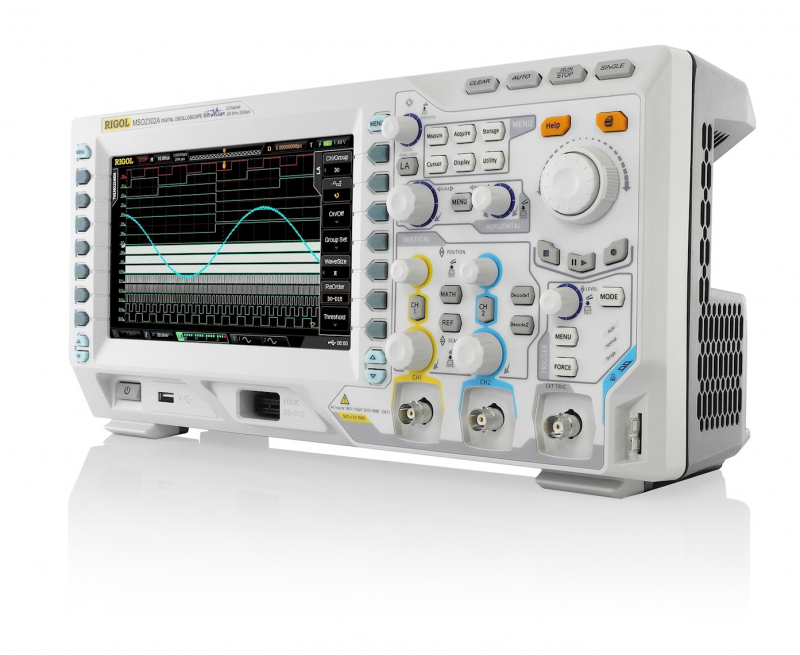

Bandwidth: 300 Mhz
Channels: 2
Number of Digital Channels(MSO) 16
Wider vertical range(500uV/div ~ 10V/div), lower noise floor
Real Time Sample Rate: 2 GSa/s (single-channel), 1 GSa/s (dual-channel)
Memory Depth: up to 14Mpts(Std.), 56Mpts(Option.)
Innovative "UltraVision" Technology
Waveform capture rate up to 50,000 wfs/s
Up to 256 Levels intensity grading waveform display
Up to 65,000 frames Hardware based Real Time waveform Record,Replay and Analysis function(Std.)
Auto Measurement: Measurements of Maximum, Minimum, Peak-Peak Value, Top Value, Bottom Value, Amplitude, Average,
Mean Square Root, Overshoot, Pre-shoot, Area, Period Area, Frequency, Period, Rise Time, Fall Time, Positive Pulse Width, Negative Pulse Width, Positive Duty Cycle, Negative Duty Cycle, Delay AB , Delay
AB , Phase AB , Phase AB
A variety of trigger and serial bus decording functions( RS232,I2C,SPI,CAN) Option
Complete connectivities :USB Host,USB Device,LAN(LXI Core Device 2011),AUX
8 inch TFT (800x480) WVGA
Power Voltage: 100 to 240 V
Size: 361.6 mm× 179.6 mm×130.8 mm
Weigt: 3.9 kg
Include: Power Cord, USB Data Cable, 2 Passive Probes (350 MHz), Quick Guide, Resource CD (User’s Guide and Application Software)
