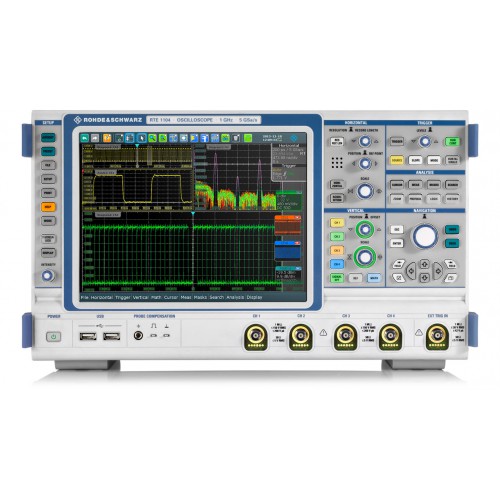

Bandwidth: 1 GHz
Channels: 4
Max. Sample Rate: 5Gsa/s
Max.Memory Depth: 200 Msample
Rise time : < 350 ps
Optional MSO: 16 digital channels, 5Gsa/s, 100Msa.
Update Rate: 1.000.000 waveforms/s
Vertical resolution: up to 16-bit
Impedance: 50 MΩ ± 1,5% (meas.), 1 MΩ ± 1 % (meas.) || 16 pF ± 1 pF (meas.)
Input sensitivity:
- at 1 MΩ:500 μV/div to 10 V/div
- at 50 MΩ:500 μV/div to 1 V/div
Timebase range: 50 ps/div to 5000 s/div
Automatic Measurement : 77 values
Dimensions(W x H x D):427 mm × 249 mm × 204 mm
Weightwithout options, nominal"8,6 kg (18.96 lb)Screen :10.4" LC TFT color touchscreen,1024 × 728 pixel (XGA)
Interfaces1 Gbit/s LAN, 4 × USB 2.0, GPIB (optional), DVI for external monitor, external trigger, trigger output
Scope of delivery: USB Cable, User Manual, Power Cord; pasive probes for each channel
