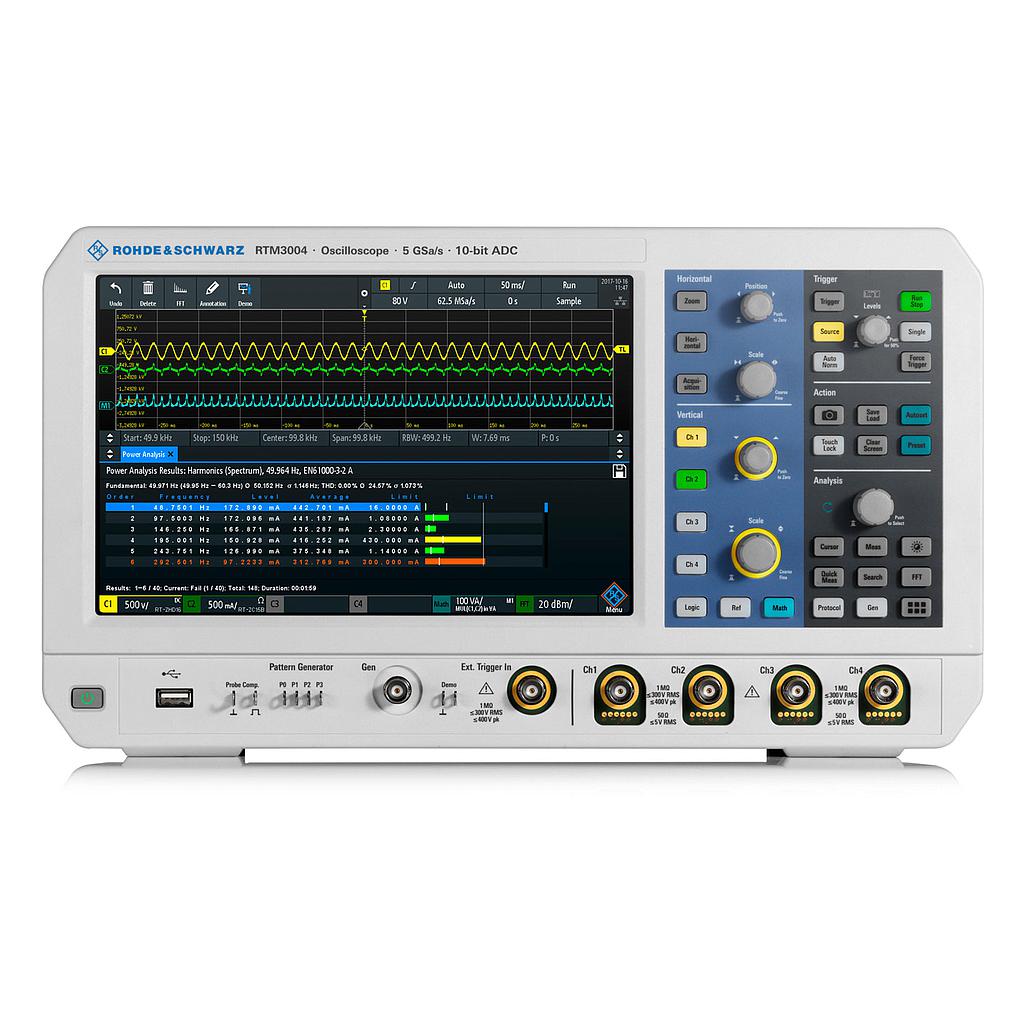

Manufacturer: Rohde&Schwarz
Model: RTM3004 + RTM-B242
Order No.: 1335.8794P24
Warranty: 12 months
Bandwidth: 200 MHz
Channels: 4
Max. Sample Rate: 5Gsa/s
Max.Memory Depth: 80 Msample
Rise time : 1.75 ns
Optional MSO: 16 digital channels
Signal Generator : 0 - 25Mhz, 14 bit, 250Msa/s
Update Rate: 50.000 waveforms/s
ADC resolution: 10 bit
Input impedance: 50 MΩ, 1 MΩ
Input sensitivity:
- at 1 MΩ:500 μV/div to 10 V/div
- at 50 MΩ:500 μV/div to 1 V/div
DC gain accuracy
Input sensitivity > 5 mV/div± 1.5% of full scale
Input sensitivity ≤ 5 mV/div± 2% of full scale
Timebase range: 0.5 ns/div and 500 s/div
Screen :10.1" WXGA TFT color display (1280 × 800 pixel)
Interfaces:USB host with MTP, USB device, LAN, powerful web server for remote display and operation
Dimensions:(W × H × D)390 mm × 220 mm × 152 mm
Weight :3.3 kg
Scope of delivery: User manual; Power Cord; R&S RT-ZP05 single-ended pasive probes for each channel
