Color: Black
Unit Weight: 710 mg

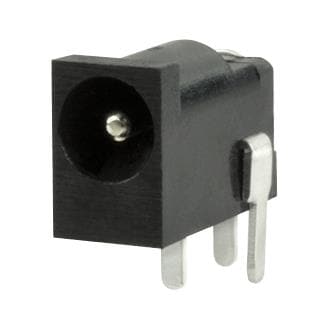

Connector Type: Jack
Contact Gender: Pin (Male)
Current Rating: 1 A
Mounting Angle: Right Angle
Mounting Style: Through Hole
Voltage Rating: 16 VDC
Contact Plating: Nickel
Contact Material: Brass
Housing Material: Polybutylene Terephthalate (PBT)
Termination Style: Through Hole
Flammability Rating: UL 94 V-0
Insulation Resistance: 100 MOhms
Inside Contact Diameter: 1.3 mm
Outside Contact Diameter: 4.2 mm
Maximum Operating Temperature: + 60 C
Minimum Operating Temperature: - 20 C
