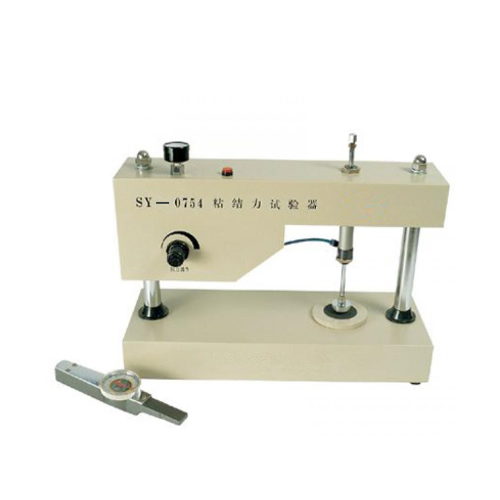

Samyon 0754 Cohesive Force Tester (1Mpa)

I.Main technical features

1.The instrument adopts desktop structure .Novel design ,reasonable structure and convenient to use .

2.The structure design of the instrument ,the specification size of the test apparatus ,act ,each meets the requirement of T 0754-2011 standard .

3.The instrument is convenient to carry .And it can be used both in lab and on site ,and it widely used in the construction organizations ,scientific research institutes to analysis and confirm the emulsified asphalt and aggregate bond degree .

II.Main technical specifications

1.The diameter of the rubber pad :Φ28.6mm

2.The thickness of the rubber pad :6.4mm

3.The hardness of the rubber pad :HRC60

4.The max pressure :1Mpa

5.Circular test mode :Φ 60mm*6mm;Φ60mm*10mm

6.Torque spanner :(0-5)N•m

7.Power supply :AC 220V+10%;50Hz

III.Optional accessories

1.Balance :weigh 500g ,reciprocal sensibility is less than 0.1g

2.Bake oven :with forced draft ,the temperature can be controlled in (60+3)℃

3.Air compressor :AU1511 compressor (recommend)
