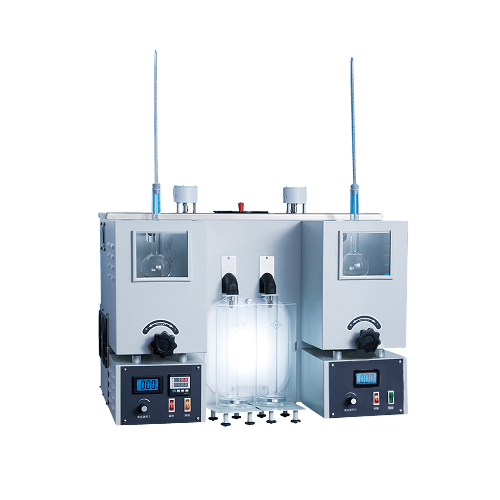

Samyon 6536B Distillation Apparatus (4000W)

1.Power supply: AC(220±10%)V, 50Hz

2.Heating power: 1000W×2.

3.Receiving cylinder: 100ml, division value is 1ml.

4.Distillation flask: 125ml,meet the requirements of GB/T 6536 and ASTM D86

5.Thermometer:(-2~300)℃ and (-2~400)℃. Division value 1℃.

6.Flask support board: SiC, bore diameter is: φ32mm, φ38mm, φ50mm.

7.Temperature controller:

1) Range: 0℃～60℃ 2) Accuracy: ±0.5℃ 3) Display: LED

Note: The temperature control is to control the temperature of condensate in the condenser pipe.

8.Ambient temperature: ≤30℃

9.Relative humidity: ≤85%

10.Cooling system: New type refrigeration compressor

11.Maximum power consumption: 4000W

12.Dimension: 730mm×530mm×580mm
