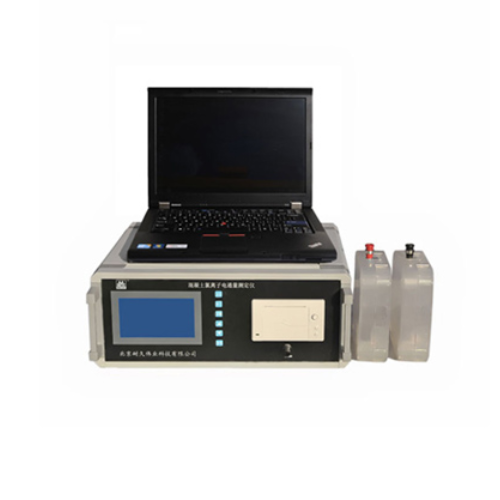

Samyon DTL Concrete Resist Chloride Ion Penetration Tester (C30-C50)

Application:

Concrete reinforcement corrosion is the primary factor affecting the durability of concrete.DTL concrete chloride ion electric flux detector can be an important indicator for the durability of concrete-concrete to resist chloride ion penetration properties(density)measurements,test indicator is the six-hour power flux (coulomb) for the concrete specimens,quickly to evaluate the concrete resistance to the chloride ion penetration ability.

Technical parameters:

1. evaluation capacity:C30-C50 portland cement concrete

2. Working voltage:~220VAC 60VDC

3. Test channels:6 channels,9 channels,12 channels optional

4. Work environment:0 centigrade~50 centigrade Humidity=<75%

5. Measurement error:<1%

Equipment specification:

host dimension: 385*345*145mm

Host weight: 5kg

Host outside dimension: 530*200*420

Vacuum-saturated machine weight: 32kg

Vacuum saturated machine dimension: 750*680*400mm

Accessories weight: 9kg

Accessories dimension: 440*350*210mm

Total weight: 46kg
