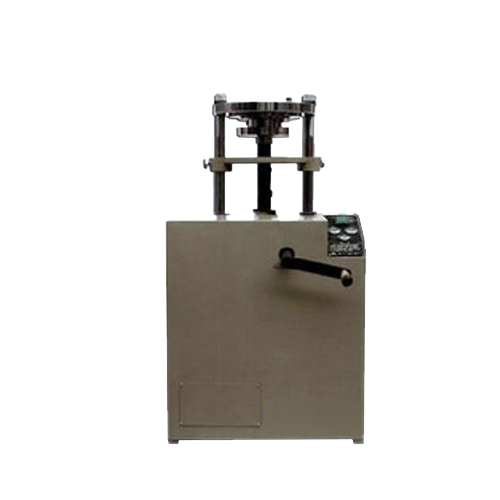

Samyon DTM-2 Electric Sample Ejector (100kN)

Application:

The Ejector is used for ejecting the specimen made of bituminous mix material and the material stabilized with inorganic binders etc. It can quickly eject the specimen from the mold and easy to operate.

Specifications:

1. Mold dimension :

a. Soil specimen : Ø102 x 116mm, Ø152 x 116mm,

b. Bituminous mix material specimen : Ø101.6 x 87mm

c. Material stabilized with inorganic binders:

Ø50 x 50mm, Ø100 x 100mm, Ø150 x 150mm

2. Maximum axial capacity: 100kN

3. Maximum travel: 220mm

4. Speed forward/reverse: 100mm/min.

5. Power supply: 380V 50Hz

6. Input power: 1100W
