Application:

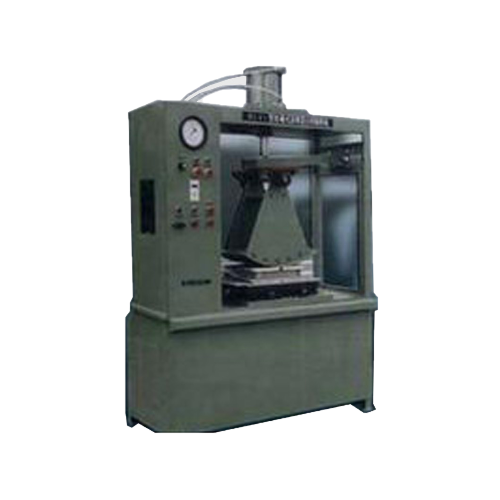

The Specimen Machine is used for producing specimen of bituminous mix material and also for laboratory experiment to test physical and mechanical property of the material.
Specifications:
1. Ambient temp. : 0 - 40℃
2. Relative humidity : ＜85%, non-corrosive and inflammable gas
3. Capacity : 12kN (1kN – 12kN adjustable, errors: ±2%)
4. Specimen dimension: 300 x 300/140 x 50/100mm (L x W x H)
5. Roller forward/reverse: 300 – 140mm continuously adjustable
6. Speed rate: 100mm/s.
7. Motor power : 1.1KW
8. Power supply : 380VAC 50Hz
9. Four-figure number set, count and automatically stop
10. Dimension : 1550 × 2050 × 620mm (L x W x H)
11. Weight: 250kg
