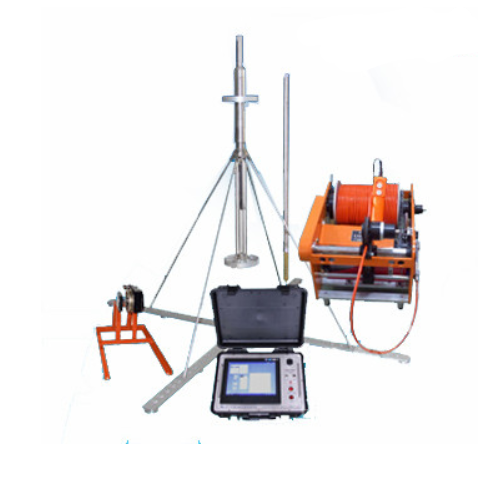

I. Main technical features
1. The measuring probes are fully digital.
2. The measuring probes are full stainless-steel materials.
3. An automatic cabling winch is equipped.
4. Caliper/inclinometer measuring probe becomes one. Also the sediment /inclinometer measuring probe becomes one. It is more practical in use.
5. The caliper logging bias is within 5mm.
6. The core of the system is IPC. No need to equip a PC. Easy to operate and good in anti-interference.
7. WIN XP/WIN VISTA/WIN 7 are suitable for operation software.
II. Main technical specifications
1. Borehole measuring range： Ф500mm～Ф1600mm（Ф2000mm、Ф2500mm can be customized）
2. Borehole measuring precision： ≤±5mm
3. Verticality measuring range： 0°～10°, measuring precision ≤±0.1°. Resistivity measuring precision≤5%
4. Sediment measurement： Diameter of probe is Ф40mm；Distance between electrodes:20mm±0.5mm.
5. Winch
Length of cable： 100m（The length can be customized）
Tensile force of cable： ≥0.35t（The tear-out force is 0.65t）
Cabling speed： 10m/min
Net weight of the winch： 50kg
Power of motor： 550W
Dimension： 600mm×450mm×350mm.
Hand-cranking height is 600mm.
Cabling mode： Automatic
6. Working temperature：
Measuring probe: 0℃～50℃
Units on the ground: -10℃～45℃
7. Relative humidity： ＜85%
8. Power supply： AC(220V±10%), 50Hz
