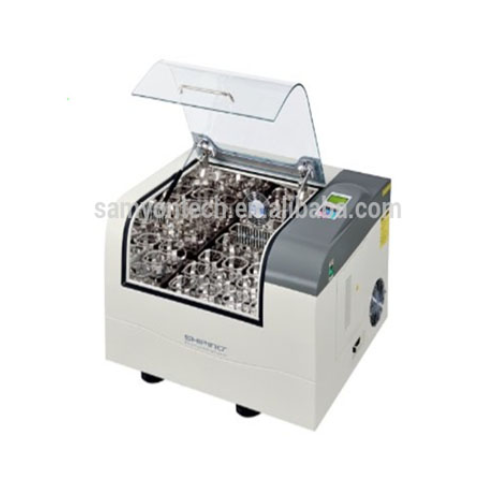

Samyon SPH-100D Desktop Thermostat Shaking Table (400W)

Control mode: P.I.D (Microcomputer scans the micro-processing chip)

Display mode: LCD (Double display of large liquid crystal screen)

Circulation mode: Forced convection

Shaking mode: Orbital shaking

Drive mode: Balancing device with single shaft (Chinese patent)

Temperature range: Ambient temperature+5°C-60°C

Accuracy of temperature: ±0.1°C

Temperature uniformity: ±0.5°C

Rotary frequency: 30~60rpm

Rotary accuracy: ±1rpm

Shimmy amplitude: $0-50mm

Safety function: Sound and light alarm for temperatures above or below the upper or lower limit; alarm for speeds above or below the upper or lower limit; separate over-temperature protector; shutdown protection for door opening.

Additional functions: Storage of rotary speed, startup after power again, recording of parameters, temperature and speed calibration, clock display and display of room temperature and actual temperature.

Programming functions: Programing of repetition, steps and eight curves settings

Heater: 150W

Timing range: 0-500 hours/continuous

Size of shaking: 400×370(mm)

Maximum capacity: 500ml*9 or 250ml*12

Standard configuration: 500ml*3/250ml*4/100ml*5/ 50ml*5

Number of shaking plate: One

Net weight: 72kg

Gross weight: 94kg

Size of cavity: 410×450×300(mm)

Shape size: 610x610×510(mm)

Power: 490W

Motor: 60W Inverter motor

Power supply: AC 200-240V 50-60HZ

Material of cavity: Imported high quality stainless steel mirror panel

Material of box: ABS special engineering plastic box shell
