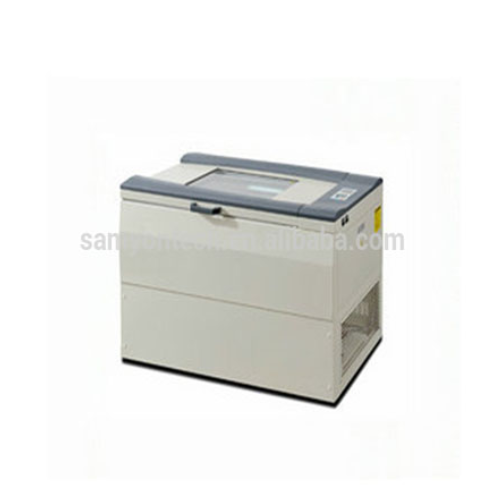

Samyon SPH-111D Horizontal Thermostat Shaking Table (5℃-60℃)

Control mode: P.I.D (Microcomputer scans the micro-processing chip)

Display mode: LCD (Double display of large liquid crystal screen)

Circulation mode: Forced convection

Shaking mode: Orbital shaking

Drive mode: Balancing device with single shaft (Chinese patent)

Temperature range: Ambient temperature +5℃-60℃

Accuracy of temperature: ±0.1℃

Temperature uniformity: ±0.5℃

Rotary frequency: 50~300rpm

Rotary accuracy: ±1rpm

Shimmy amplitude: Φ50mm

Safety functions: Sound and light alarm for temperatures above or below the upper or lower limit; alarm for speeds above or below the upper or lower limit; separate over-temperature protector; shutdown protection for door opening; leakage or overcurrent protector.

Additional functions: Storage of rotary speed, startup after power again, recording of parameters, temperature and speed calibration, clock display and display of room temperature and actual temperature.

Programming function: Programing of repetition, steps and eight curves settings

Heater: 800W

Timing range: 0 – 500 hours/continuous

Size of shaking plate: 920×500(mm)

Maximum capacity: 2000ml*10 or 1000ml*18 or 500ml*28 or 250ml*36

Standard configuration: 500ml*28

Number of shaking plate: One

Net weight: 150kg

Size of cavity: 970×550×350H

Shape size: 1250×740×840H

Power: 960W

Motor: 120W Inverter motor

Power supply: AC 200~240V 50~60HZ

Material of cavity: Imported high quality stainless steel mirror panel

Material of box: High-quality and high-tensile channel steel, angle steel and cold steel sheets
