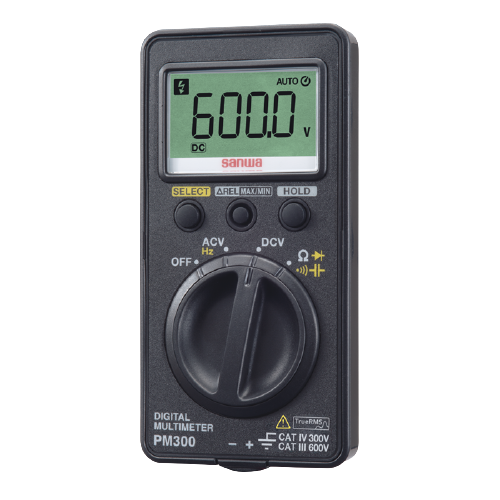

SANWA PM300 Digital Multimeter

Measuring range; Best accuracy; Resolution

DCV: 600m/6/60/600V; ±(0.8%+3); 0.1mV

ACV: 6/60/600V; ±(1.2%+5); 0.001V

Resistance: 600/6k/60k/600k/6M/60MΩ; ±(1.5%+5); 0.1Ω

Capacitance: 60n/600n/6μ/60μ/600μF; ±(3.0%+10); 0.01nF

Frequency: 99.99/999.9/9.999k/99.99kHz; ±(0.5%+3); 0.01Hz

Continuity:

- Buzzer sounds between 10Ω~50Ω

- Open voltage: approx.0.1V

Diode test: Open voltage: approx.3.2V

Display: numeral display 6000

Sampling rate: 5 times/sec.

Bandwidth: 45~500Hz

Battery: Coin type lithium battery CR2032(3V)x1

Battery life: Approx.150h at DCV

Size/Mass: H110×W56×D13mm/84g H121xW63xD28mm/135g(when stored in case)

Test lead length/Pin tip: Length: approx.0.5m/18mm

Safety: IEC61010 CAT.Ⅳ 300V CAT.Ⅲ 600V
