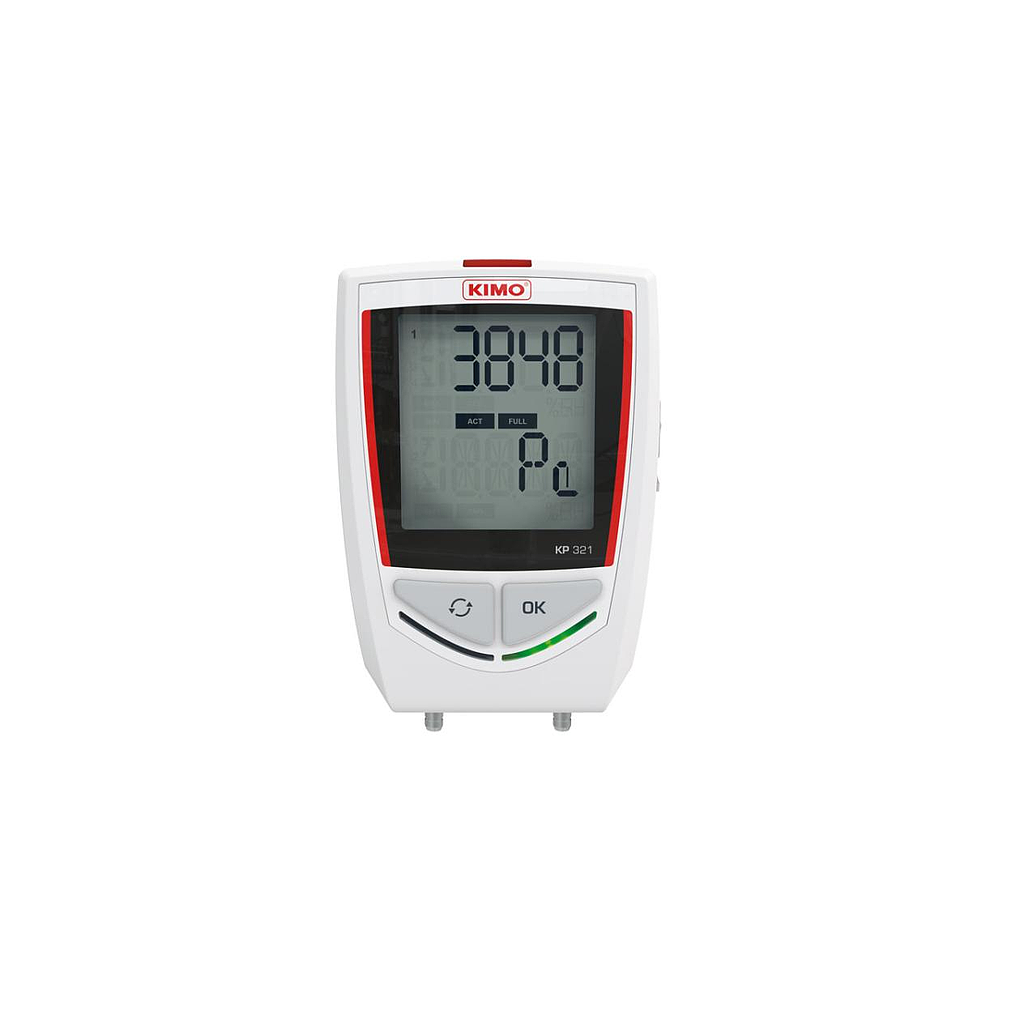

Sauermann KP 321 Differential Pressure Data Logger

Display: Yes

Internal sensor: 1: Diferential pressure

External sensor: -

Parameter: Diferential pressure

Display

2 lines LCD screen

Dimensions of screen: 49.5 x 45 mm

2 indication LEDs (red and green)

PC communication: 1 micro-USB input

Power supply: 2 x AA lithium 3.6 V battery

Protection: IP65*

Material: Compatible with food industry environment

ABS housing

Dimensions: 110.2 x 79 x 35.4 mm

Weight (with batteries): 206 g

Environmental conditions of use:

Air and neutral gases

Hygrometry: in non-condensing conditions (< 80% RH)

Maximum altitude: 2000 m

Units displayed: Pa

Resolution: 1 Pa

Tolerated overpressure: 69,000 Pa

Measuring range: ±10,000 Pa

Accuracy: ±0.5% of reading ±30 Pa

External input: Micro-USB female connector

Input probe: 2 pressure connections

Setpoints alarm: 2 setpoint alarms on each channel

Frequency of measurements: From 1 second to 24 hours

Operating temperature: From 0 to +50 °C

Storage temperature: From -20 to +50 °C

Battery life: 5 years

Datasheet
