Width: 49.8 mm
Height: 40.3 mm
Length: 64.8 mm
Approvals: UL, CSA, IEC/EN
Compliance: CSA, IEC/EN 60939, UL 1283
Inductance: 8 mH
Capacitance: 0.47 uF, 470 pF

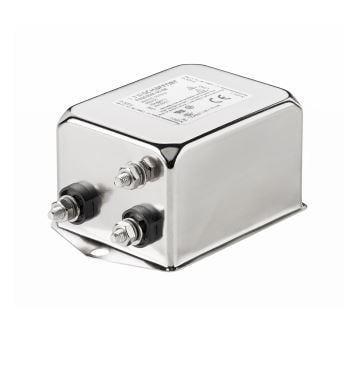

Filter Type: 1-Phase Single-Stage Filter
Unit Weight: 285 g
Current Rating: 8 A
Mounting Style: Chassis Mount
Voltage Rating: 250 VAC
Leakage Current: 70 mA
Termination Style: Screw
Operating Frequency: 0 Hz to 400 Hz
Maximum Operating Temperature: + 100 C
Minimum Operating Temperature: - 25 C
