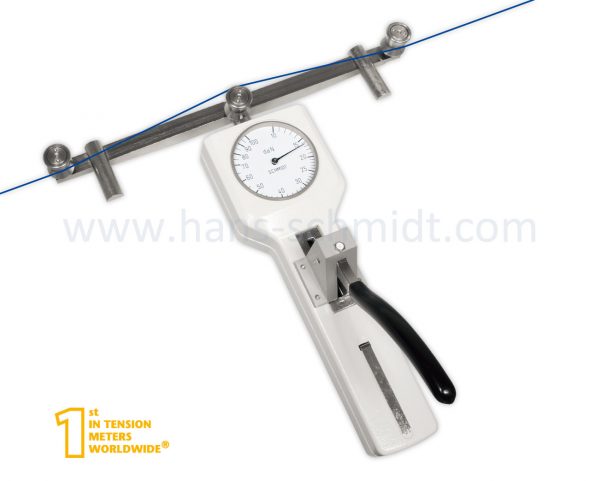

Measuring Range: 10 – 100 daN
Measuring Head Width*: 265 mm
SCHMIDT Calibration Material**: steel rope 2 mm Ø
Calibration: According to SCHMIDT factory procedure
Accuracy: ±3 % full scale or ±1 graduation on scale
Scale diameter: 54 mm
Temperature range: 10 – 45 ºC
Air humidity: 85 % RH, max.
Housing material: Die-cast aluminium
Dimensions: See dimensions above
Weight, net (gross): Approx. 1100 g (2400 g)
* Outer distance between outside guide rollers
** SCHMIDT calibration material twisted steel rope
Delivery Includes: carrying case, operating instruction in German or English (as requested), Certificate of compliance with the order 2.1 according EN 10204 free of charge
