Tension Ranges: 200 – 2000 cN
Measuring Head Width*: 116 mm
SCHMIDT Calibration Material**: PA: 0.50 mm Ø
Calibration: According to SCHMIDT factory procedure
Accuracy: ±1 % full scale or ±1 graduation on scale
Scale diameter: 41 mm
Temperature range: 10 – 45 ºC
Air humidity: 85 % RH, max.
Housing material: Die-cast aluminium
Dimensions: See dimensions
Weight, net (gross): approx. 400 g (800 g)
Other tension ranges, measuring head widths available on request.
Other units of measure available – g or kg.
* Outer distance between outside guide rollers.
** Suitable for 95 % of applications – PA = Polyamide Monofilament

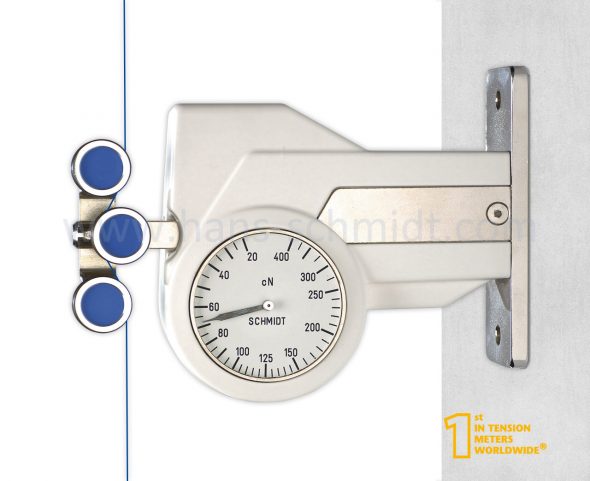

Delivery Includes: Tension meter DX2S in transport packaging, mounting screws, operating instruction in German or English (as requested), Certificate of Compliance with the order 2.1 according EN 10204 free of charge
