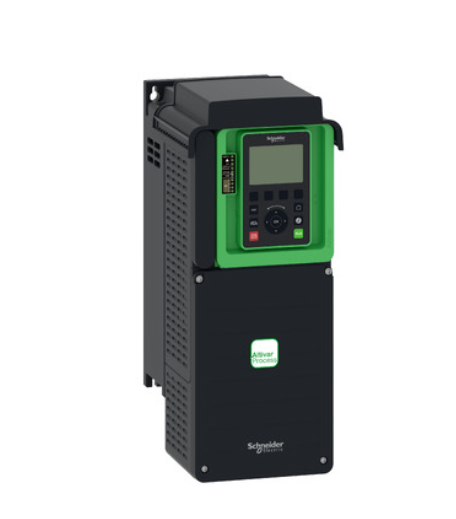

Range of product: Altivar Process ATV600
Product or component type: Variable speed drive
Product specic application: Process and utilities
Variant: Standard version
Product destination:
Asynchronous motors
Synchronous motors
EMC lter:
Integrated with 50 m conforming to IEC 61800-3 category C2
Integrated with 150 m conforming to IEC 61800-3 category C3
IP degree of protection
IP21 conforming to IEC 61800-5-1
IP21 conforming to IEC 60529
[Us] rated supply voltage: 380...480 V
Degree of protection: UL type 1 conforming to UL 508C
type of cooling: Forced convection
Supply frequency: 50...60 Hz - 5...5 %
[Us] rated supply voltage: 380...480 V - 15...10 %
Motor power kW:
7.5 kW (normal duty)
5.5 kW (heavy duty)
Motor power hp:
10 hp normal duty
7.5 hp heavy duty
Line current:
13.8 A at 380 V (normal duty)
11.9 A at 480 V (normal duty)
10.5 A at 380 V (heavy duty)
9.2 A at 480 V (heavy duty)
Prospective line Isc: 50 kA
Apparent power:
9.9 kVA at 480 V (normal duty)
7.6 kVA at 480 V (heavy duty)
Continuous output current:
16.5 A at 4 kHz for normal duty
12.7 A at 4 kHz for heavy duty
Asynchronous motor control profile
Variable torque standard
Optimized torque mode
Constant torque standard
Synchronous motor control profile:
Permanent magnet motor
Synchronous reluctance motor
Speed drive output frequency: 0.1…500 Hz
Nominal switching frequency: 4 kHz
Switching frequency:
2...12 kHz adjustable
4...12 kHz with derating factor
