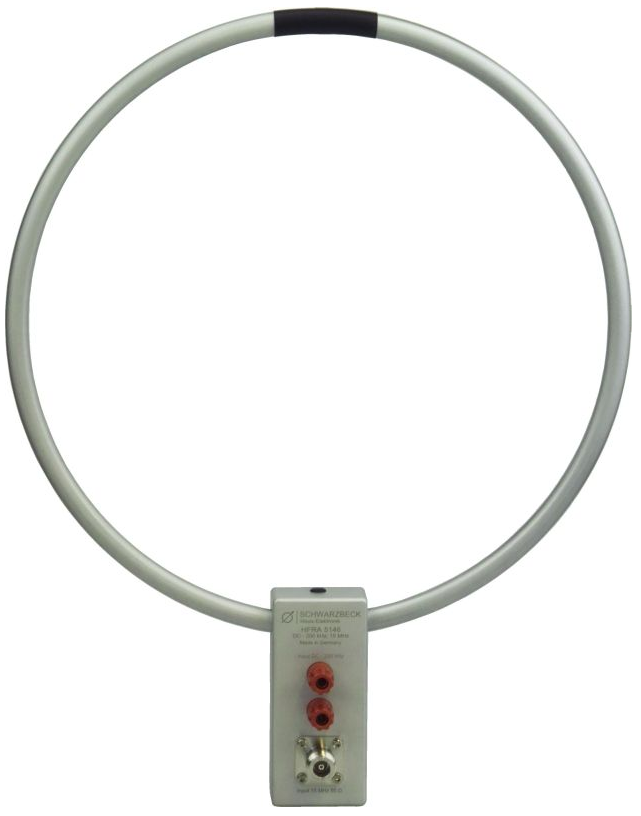

Frequency Range: 0 – 200 kHz, 15 MHz
Number of turns: 2
Loop diameter: 300 mm
Maximum current at the terminals “DC – 200 kHz”: 20 A
Magnetic Fieldstrength at 1 A coil current: 6.67 A/m
Terminal „DC–200 kHz“: 4 mm Polklemmen, 4 mm laboratory jacks
Input 15 MHz
Input Impedance: 50 Ω (15 MHz)
Continuous Input Power: 10 W / 40 dBm
Max. Input Power: 20 W / 43 dBm (1 min.)
Input terminal „Input 15 MHz“: N-Buchse, N-jack
Mechanical Dimensions: 410 × 315 × 50 mm
Mount: 1/4"; 3/8"
Weight: 430 g
