"Freeze-drying Area(m2):0.24
Cold Trap Water Capture Capacity(kg):2
Tray Size(mm):300x400
Tray Quantity:2+1(temperature compensation board)
Minimum Cold Trap Temperature(℃):-65℃
Shelf Temperature(℃):-50~60℃
Vacuum Degree(Pa):≤1Pa
Number of Penicillin Bottles That Can be Placed (For Reference Only):
16mm/2ml:1600
22mm/5ml:700
22mm/7ml:500
Vacuum PumpStandard
Power Supply:AC220V, 50/60Hz
Consumption(W):2600
G.W. (kg)(Including Vacuum Pump):250"

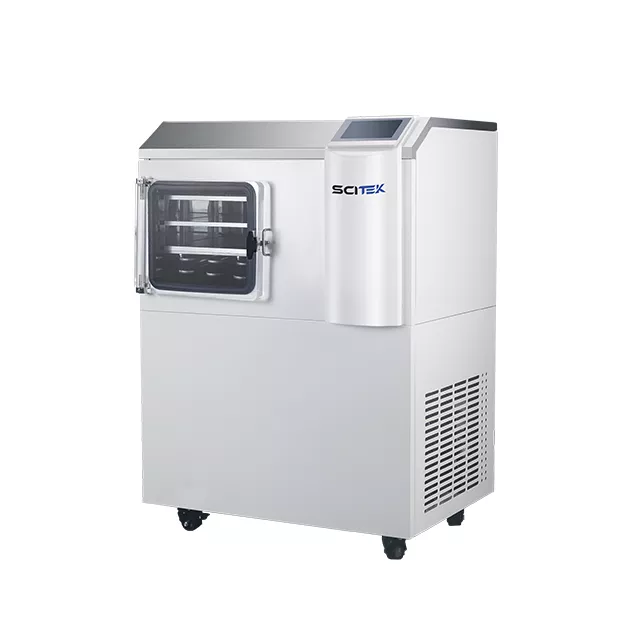

"FD-PS series can be used for both liquid and solid samples, and all operations can be carried out inside the chamber. Based on the set temperature, time, and vacuum pressure, the sample can be pre-frozen in situ, with temperature probes on each shelf. The transparent organic glass cold trap door allows observation of the ice formation inside the cold trap. Quick hot gas defrosting can be selected, with shelf temperatures ranging from 50°C to +60°C. The effective shelf area ranges from 0.1 to 0.48m2.
Freeze Dryer Features:
Microcomputer control and touch screen
Remote control via mobile phone and computer
Internationally renowned compressor
Acrylic transparent door
Standard vacuum control function
Adjustable heating and cooling speed"
