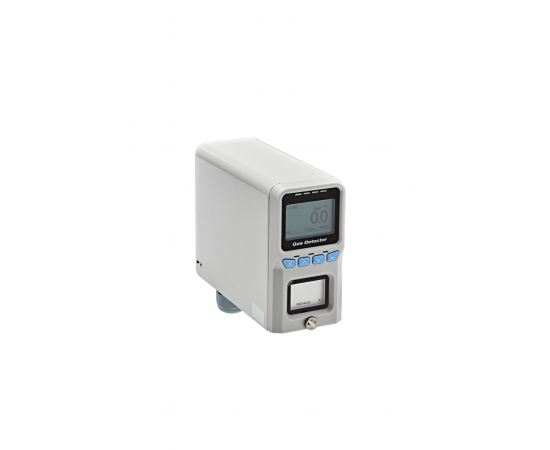

SENKO SI-H100 Sampling Type Fixed Gas Detector

Dimension : 123 (H) X 65 (W) X 155 (D) mm

Weight:  2kg

Operating Voltage:  DC : 24V ±10%; PoE : 36V~57V (Typical : 48V)

Flow Rate : 500mL/min (MAX 900)

Power Consumption : Approximately 5.0W

Measuring Type Display: Graphic LCD (160X100), Gas concentration, Flow rate, Alarm, Rear light, Device abnormality

Alarm : 90dB at 10cm

Relay:  Primary Alarm, Secondary Alarm, Fault Alarm

Output Signal : Analog, 4-20mA

Digital Communication : RS-485, TCP Ethernet

Sampling Distance : Length of input gas tube : Up to 30m (FEP tube); Length of exhaust gas tube : Up to 30m (FEP tube)

Input/Output Tube:  1/4” Teflon tube

Operating Temperature:  0°C ~ 40°C

Control/Set:  4 Buttons & RS-485 & Ethernet

Remote Interface : Ethernet, RS-485

Wiring:  4 to 20mA / DC power / Relay : Up to 14 AWG

ETC:  Update the latest version of firmware available via the web

Certification : EMC, RoHs2
