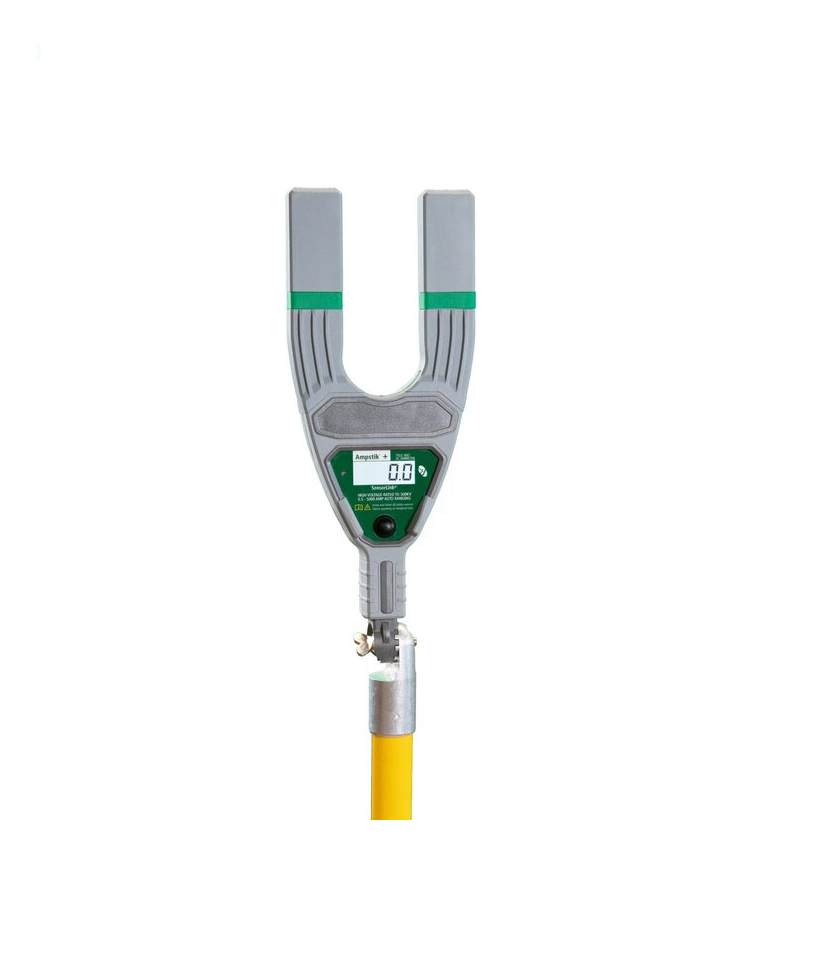

Sensorlink 8-020 XT PLUS High Voltage, Multiple Reading Ammeter (0 - 500 kV)

Range of Operation

Voltage: 0 - 500 kV

Current: .5 - 5000 A

Sensor Opening:

Standard Opening Width: 2.5 in, 6.35 cm

Resolution

Amps 1 - 99.9 A: 0.1 A

Amps 200 - 1999 A: 1 A

Amps 2000 - 5000 A: 0.01 kA

Accuracy: ± 1% ± 2 counts

Operation

Frequency: 60 Hz (57 to 63 Hz) or 50 Hz (47 to 53 Hz) Models Available

Controls: One button operation

Readings: Four reads

Mechanical

Weight Standard Sensor: 1.75 lbs, 0.79 kg

Operating Temperature: -22 to 140 degrees F (-30 to + 60 degrees C)

Display: 3.5 Digit Display

Housing: Fire resistant and waterproof polycarbonate & silicone

Hot stick mounting: Universal chuck adapter (Hot stick not included)

Battery: 9V Alkaline or Lithium
