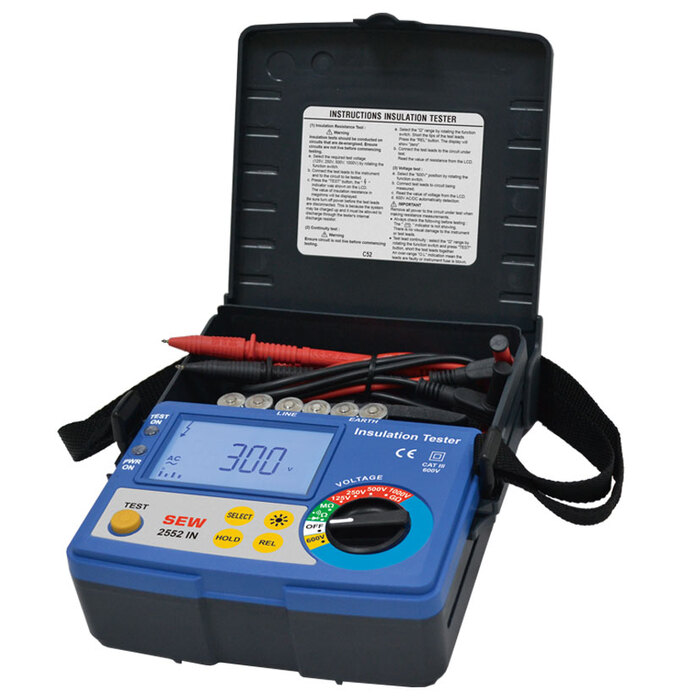

SEW 2552 IN Digital Insulation Multi-Meter (200GΩ, 600V AC/DC)

Insulation Resistance (GΩ)

Test voltage (DC V): 125V / 250V / 500V / 1000V

Output voltage on open circuit: Rated test voltage + 10%

Measuring ranges: 0-25GΩ / 0-50GΩ / 0-100GΩ / 0-200GΩ

Accuracy: ±(3%rdg+5dgt)

Output short-circuit current: ≥1.0mA

AC/DC V oltage

Measuring ranges: 600V AC/DC auto detection

Accuracy: ±(3%rdg+5dgt)

Resistance

Measuring ranges: 20.00kΩ / 200.0kΩ / 2000kΩ / 20.00MΩ

Accuracy: ±(3%rdg+3dgt)

Continuity

Measuring ranges: 20.00Ω / 200.0Ω / 2000Ω

Buzzer: under 10Ω

Open circuit voltage: 5V±1V

Short circuit current: >210mA

Accuracy: ±(3%rdg+5dgt)

General

Dimension: 207(L) x 188(W) x 68(D) mm

Weight Approx.: 1175g

Power source: 1.5V (AA) x 6 Alkaline batteries

Accessories

Instruction manual

Test leads

Batteries

Shoulder belt
