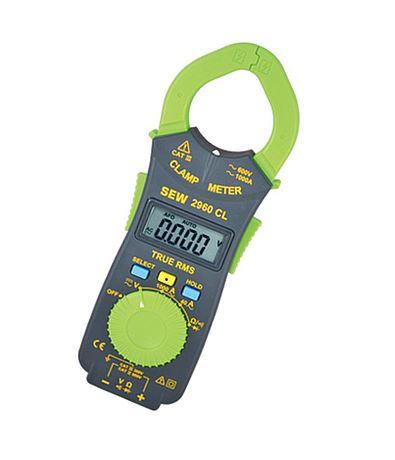

SEW 2960 CL Clamp Meters (AC 1000A; True RMS)

AC A:
Ranges: 40.00A / 400.0A / 1000A
Resolution: 0.01A / 0.1A / 1A
Accuracy: ±(2.0%rdg+5dgt) (40~200Hz)
AC V:
Ranges: 4.000V / 40.00V / 400.0V / 750V
Resolution: 1mV / 10mV / 100mV / 1V
Accuracy: ±(1.5%rdg+10mV) (40~500Hz) / ±(1.5%rdg+5dgt) (40~500Hz)
DC V:
Ranges: 4.000V / 40.00V / 400.0V / 1000V
Resolution: 1mV / 10mV / 100mV / 1V
Accuracy: ±(1.0%rdg+5dgt)
Resistance:
Ranges: 400.0Ω / 4.000kΩ / 40.00kΩ / 400.0kΩ / 4.000MΩ / 40.00MΩ
Resolution: 0.1Ω / 1Ω / 10Ω / 100Ω / 1kΩ / 10kΩ
Accuracy: ±(1.5%rdg+3dgt) / ±(2.0%rdg+4dgt)
Continuity:
Ranges: 400.0Ω
Audible threshold: Less than 25Ω
Overload Protection:
AC V : 750Vrms
DC V : 1000V
Diode & ohm : 250Vrms
Conductor size: 35mm Max.
Low battery indication: Sign appears on the display
Response time: Approx. 2 times per second
Operating temperature & humidity: 0ºC ~ 40ºC / 80% R.H. Max.
Storage temperature & humidity: 0ºC to 50ºC / 80% Max.
Battery life: Approx.100 hours on continuous use
Dimensions: 183(L) × 62(W) × 20(D)mm
Weight (battery Included): Approx. 124g
Power source: CR 2032 (DC 3V) × 1
Safety standard: EN 61010-1 CAT II 600V / CAT III 300V / EN 61010-2-32 / EN 61326-1

Datasheet
