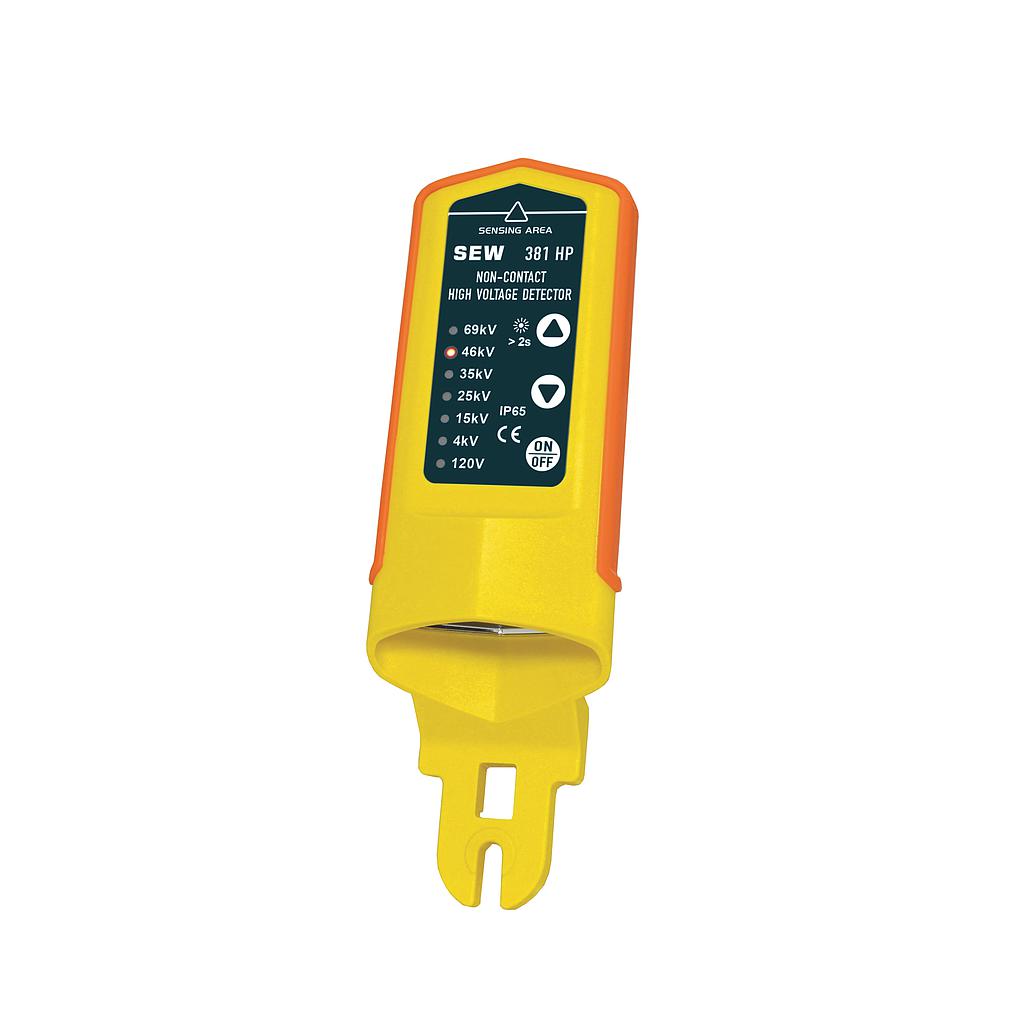

SEW 381 HP Non-contact High Voltage Detector

• Protection class: IP65

• 7 voltage settings: 120V, 4kV, 15kV, 25kV, 35kV, 46kV, 69kV

• Bright LED visual indication

• Vibration function

• Frequency range: 40~70Hz

• Audible indication

• Easy-to-prove method

• Power source: 9V alkaline battery

• Non-contact detection by proximity

• Compatible with most hot sticks

• Lightweight, robust & compact

• Special ranges are available upon request

• Flashlight function

• Safety standard: EN 61326-1 CISPR 11

• Operating temperature and humidity: 0°C ~ 40°C / 80% R.H. Max.

• Dimensions: 262(L) × 85(W) × 56(D)mm

• Weight: Approx. 345g
