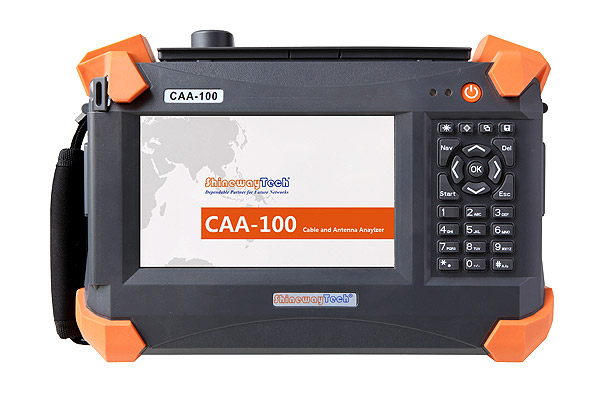

ShinewayTech CAA-100A Cable & Antenna Analyzer + Spectrum Analyzer (1-6000MHz)

Frequency Range : 1–6000 MHz

Frequency Resolution : 1 kHz

Frequency Accuracy : ±2 ppm

Output Power : 0 dBm (typ.)

Measurement Speed : 1.5 ms/pt

Return Loss Range : 0–60 dB

VSWR Range : 1–65

Cable Loss Range : 0–30 dB

Distance-to-Fault Range : up to 1500 m

Phase Measurement Range : −180° to +180°

Spectrum Analyzer Range : 300–4000 MHz

RBW/VBW : 1 k–300 kHz (1, 3, 10 step)

Amplitude Accuracy : ±1.5 dB (typ., 25 ± 5 °C)

Displayed Average Noise Level : ≤ −130 dBm/Hz

Display : 7 inch touch screen (800×480)

Interface : USB Host/Device, LAN Port

Memory : 16 GB (>2000 traces)

Power Supply : 11.1 V / 7800 mAh battery, AC 110–240 V adapter

Operating Temperature : −10 °C to 50 °C

Dimensions (L×W×H) : 290 × 175 × 75 mm

Weight : 2.5 kg
