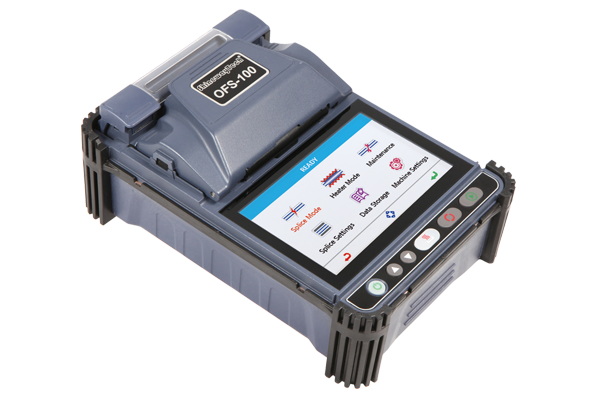

ShinewayTech OFS-100 Clad Alignment Splicer

Fiber Type: SMF (G.652), MMF (G.651), DSF (G.653), NZ-DSF (G.655), BIF (G.657), CSF (G.654), EDF

Protection Sleeve: 40mm - 60mm

Splicing Principle: Arc

Alignment: 4 Motors Alignment

Splice Control: Auto and Manual Splicing

Arc Optimization: Yes

Splice Mode: 240 groups

Heating Mode: 60 groups

Display Mode: X, Y, X+Y

User Interface: Graphical interface, multiple language support

Splice Result: Auto splice result (Loss) calculation and display

Data: ≥10000 splice records (CSV format), ≥150 screenshots

Data Port: USB, Driver-free

Fiber Diameter: Cladding: 80~150μm, Coating: 100~1000μm

Cleave Length: 5mm~16mm

Splice Loss: MMF ≤ 0.01dB (Typical), SMF/BIF ≤ 0.02dB (Typical),

: DSF/NZDSF/EDF ≤ 0.04dB (Typical), CSF ≤ 0.02dB (Typical)

Return Loss: >60dB

Splice Time: ≤6s (Fast mode), ≤9s (Auto mode);

Heating Time: ≤18s, Adjustable

Zoom: 400 x（X+Y）； 320 x (X or Y)

Electrode Life: ≥5000 splices

Tension Test: 1.96N～2.25N

Start-up Time: ＜10s

Power Supply: 220V±10%, 50Hz AC/DC; Rechargeable Lithium Battery；support operation when charging

Battery Life: ≥200 Splicing and Heating

Chanrging Time: ≤4 hours

Size: 131mm×79mm×200mm (L x W x H)

Weight: 1.3Kg (With Battery)

Work Temperature: -20℃～+55℃

Storage Temperature: -40℃～+70℃

Humidity: ≤95% (non-condensing)

Altitude: 0 m～5000 m

Wind Speed: ≤15 m/s
