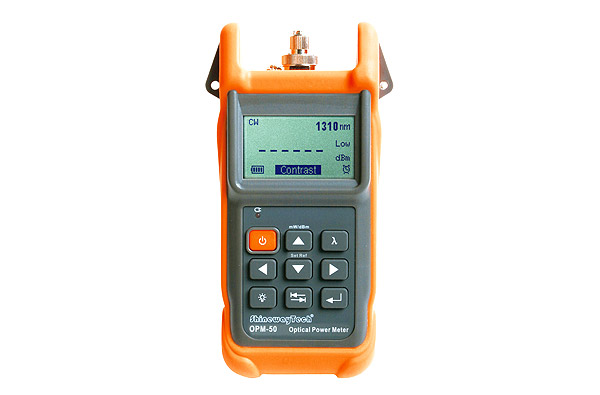

ShinewayTech OPM-50-B Intelligent Optical Power Meter (-50 ~ +27dBm)

Calibrated Wavelength(1): 850,1300,1310,1490,1550,1625nm

Power Range (dBm)(2): -50 ~ +27

Fiber Type: Singlemode/Multimode fibers

Detector Type: InGaAs

Accuracy: ±5% ±1nW (±0.5dB@850nm)

Resolution (dB): 0.01

MOD Identification: 270, 1K, 2K Hz

Auto Wavelength Identification : Yes (With SLS-50)

Display Unit: W/mW/µW/nW/pW/dBm/dB(REF)

Data Storage: 1000 records

Connectivity: USB

Connector(3): FC (Interchangeable SC/ST)

Power Supply: Lithium Battery/ AC Adapter

Battery Life: Continuous operation: 70 hours

Power Saving: Auto-off after 5 minutes idle

Operating Temperature: 0ºC ~ 50ºC (32 ~ 122 F)

Storage Temperature: -20ºC ~ 70ºC (-4 ~ 158 F )

Relative Humidity: 0 ~ 95% (Non-condensing)

Weight: 315g (0.69 lbs)

Dimensions (H × W × T): 177×80×44mm (6.97×3.15×1.73 inch)

Ordering Information:

Standard Package Includes::

Instrument, Lithium battery, AC adapter, USB cable, OPM data analysis software CD, Soft carrying case, Warranty card, CE certificate, Certificate of calibration,:

Datasheet
