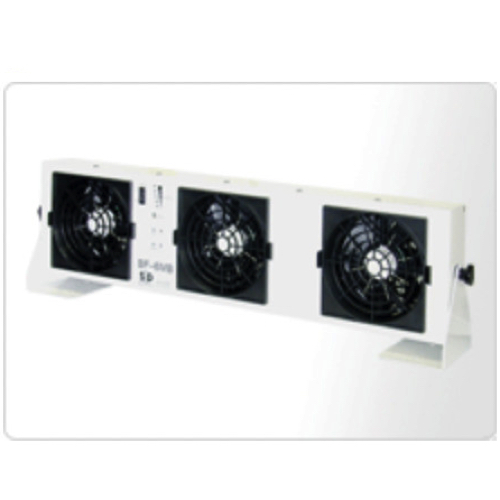

Shishido BF-6MB Static Eliminator Blower WINSTAT (30 VA (Maximum Air flow))

Input power supply: 24 VDC (AC adapter AC 100 to 240V )

Electric consumption: 30 VA (Maximum Air flow)

Output voltage: ±7,500 V0-p

Ion balance: Within ±5V(at 300 mm distance ; when shipped from the factory)

Decay Performance: Below 1.5 second (Distance at 300mm with maximum air speed)

Air volume: 1.4 to 3.2 m3 / min ×3 fans

Air speed: 0.8 to 1.0 m / sec (distance 300 mm; centered)

Ozone density: Under 0.006 ppm at distance 150 mm front

Operating Environment: 0 to 40℃ / 15 to 85% RH (no condensation)

Filter: Pre-filter level

Signal output: MOS FET Relay Non-voltage contact (NC output) HV alarm: OFF

Main unit dimensions: 566×146×69.5 mm (W×H×D) not including Fixing Bracket and projecting portion

Weight: Approx. 3,100 g (with stand flame)

Noise Level: 61 dB(A) (distance 1 m)

Accompanying items: Handling Manual, AC adapter, Fixing Bracket(2), knob bolt(2), rubber packing(2), signal cable, cleaning brush, 2P-3P plug adapter

Optional parts

Discharge Emitter unit :DNU-W85

Filters :OBF-F2ZA-1-10(package of 10)
