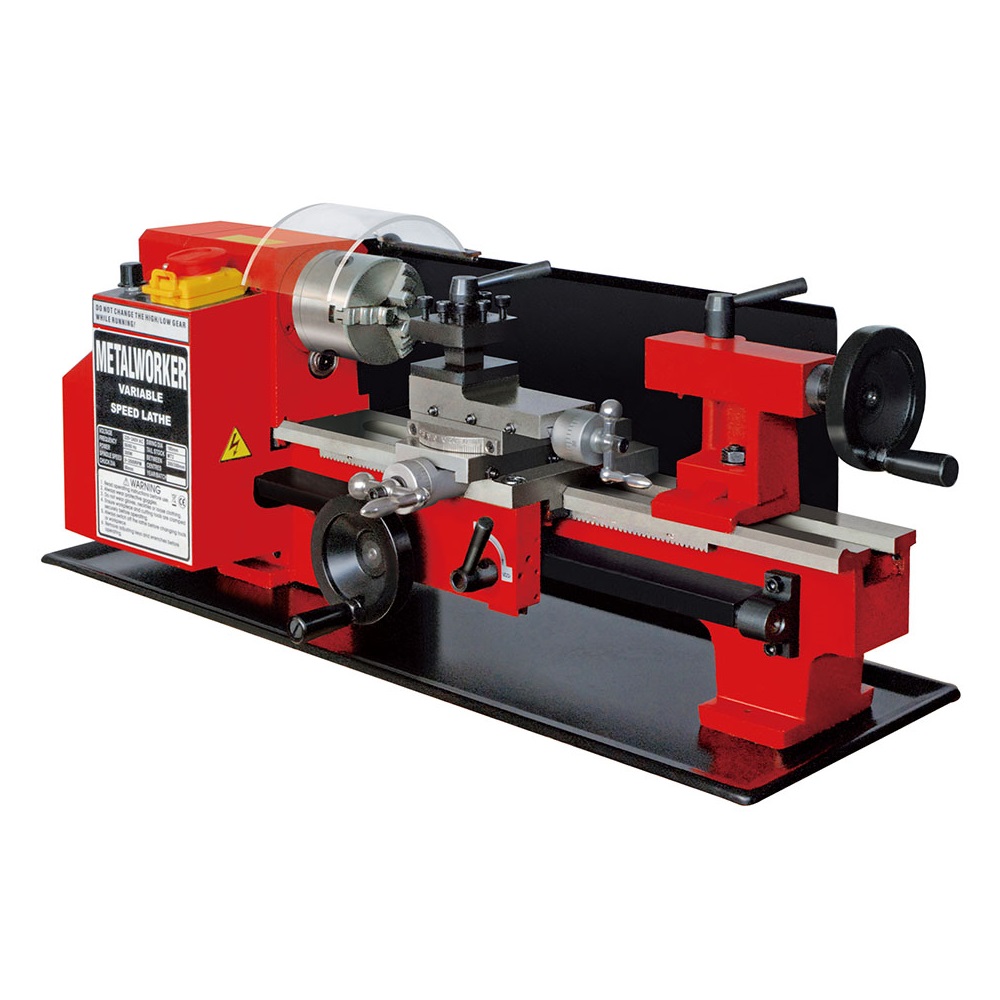

Sieg C2 Mini Lathe (250W)

Swing over bed: 180 mm

Distance between centers Model 200: 200 mm

Model 300:300 mm

Hole through spindle:20 mm

Cross slide travel:65 mm

Compound travel:55 mm

Spindle taper:MT3

Tailstock taper:MT2

Spindle speed Low range:100-1100 ±10% rpm

High range:100-2500 ±10% rpm

Motor output power: 250 W

Range of threads Metric version:0.4-2.0 mm (10 thread pitches)

Imperial version:12-52 TPI (18 thread pitches)

Overall dimension(LxWxH)Model200:600x300x300 mm

Model 300:700x300x300 mm

Weight (Net/Gross) Model 200:33/36 kg

Model 300:37/40 kg

Packing size (LxWxH) Model 200:690x360x390 mm

Model 300:790x360x390 mm
