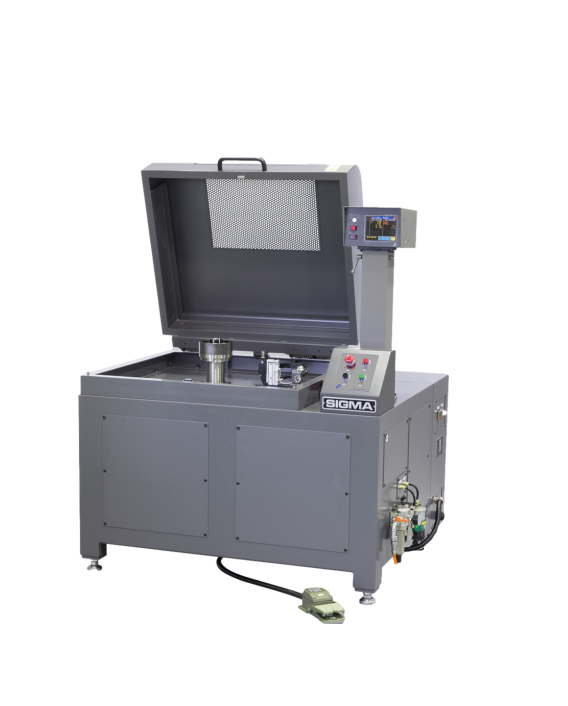

Workpiece
Max. Mass: 30kg
Max. Diameter: ø800mm
Mechanical unit
Motor: AC servo motor, 400kW
Chucking Adapter: Collect chuck
Balancing speed: 5,000 to 1,500 min-1
Bearing support system: Semi-hard type *Calibration by test weight is necessary .
Angle of unbalance index: Automatic indexing of spindle
Safety Cover: Manual up and down door (with torque hinge, interlock) -optional
Marking unit: Stamping marker by sir cylinder -optional
Vibration sensor: Optical contactless displacement sensor
Rotation sensor: Fiber sensor
Measuring unit
Balancing plane: 1 plane
Balancing method: Fixed-speed measuring
Eccentricity correction: Included
Min. Achievable Unbalance: 0.5µm (test piece: 30kg)
Graphic display: 5.7" TFT color LCD with touch screen
Indication mode: Polar coordinates and (3 to 24) components of unbalance vector (add or remove of unbalance correction masses are selectable)
No. of stored work data: 50 data
Judgment of measured result: Judgment with set limit value
Data transfer: Measured data can be transferred to PC by USB cable
Others
Power supply: 3 phase 200V ±10%
Dimensions: 1,307(W) × 1,310(L) x 1,489(H)mm
Mass: Approx. 970kg
