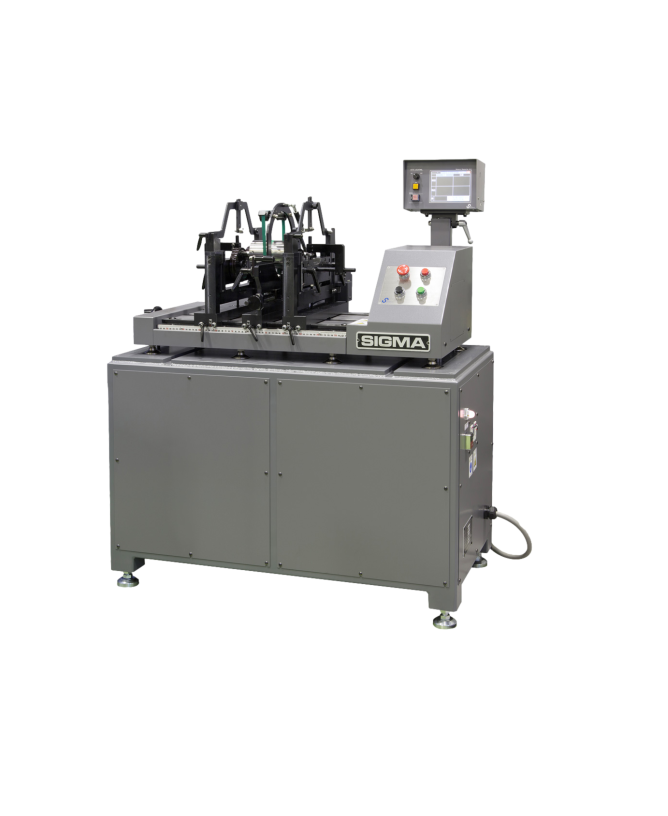

Workpiece
Max. Mass: 5kg
Max. rotor diameter: ø150mm
Diameter for belt drive: ø20 to ø50m
Journal diameter: ø8 to ø50mm
Span across Bearings: 50 to 350mm
Mechanical unit
Belt drive system: Upward-Tangential, Underslung, Downward-Tangential
Motor: AC servo motor, 400W
Balancing speed: 600 to 3,000min-1 (Depending on outer diameter of workpiece)
Bearing support system: Soft type
Angle of unbalance index: Automatic indexing
Between bearings method: Roller bearing
Measuring unit
Min. Achievable Unbalance: 0.1 µm
Balancing plane: 1 and 2
Graphic display: 5.7" TFT color LCD with touch screen
Min. unbalance indication: 0.01mg
Indication mode
Multi-speed Multi-plane, Fix-speed Multi-plane
Polar coordinates and (3 to 36) components of unbalance vector (add or remove of unbalance correction masses are selectable)
No. of stored work data: 50 data (No limitation when use with USB memory)
Judgment of measured result: Judgment with set limit value
Data transfer: Measured data can be transferred to PC or stored USB memory -optional
Others
Power supply: 3 phase AC200V 50/60Hz
Dimensions: 955(W) × 1,430(L) × 1,160(H)mm
Mass: Approx. 300kg (Including base frame)
