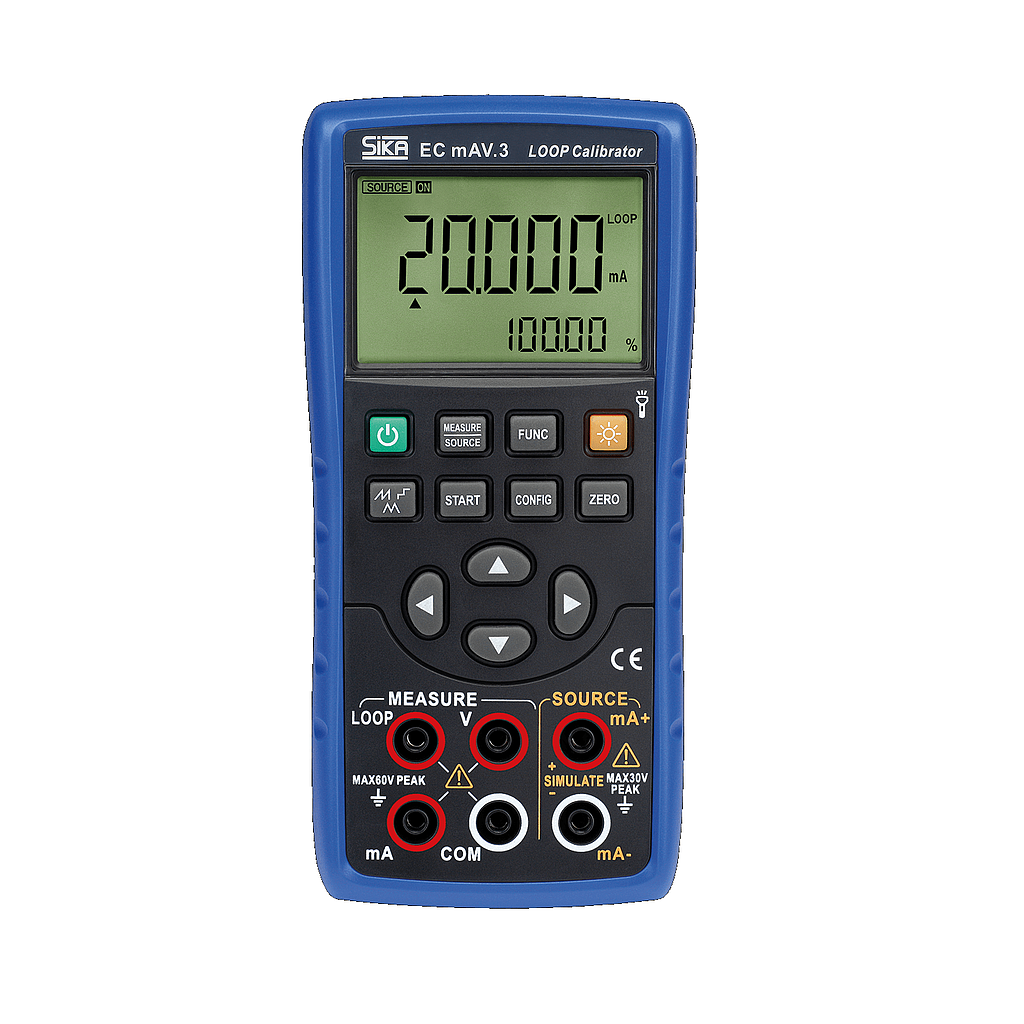

Sika EC mAV.3 Mono functions process calibrator (±0.05 %)

Current (mA):

Loop current signal generation : 0...30 mA

Loop current signal measurement : -35...35 mA

Accuracy (of reading + const.) : ±0.05 %

Current loop supply : 24 V ±10 %, 22 mA

HART Communication protective resistor : -

Voltage (V):

Voltage signal generation : -

Voltage signal measurement : -35...35 V

Accuracy (of reading + const.) : ±0.02 %

Continuity (O/C):

Continuity measurement : -

Switching threshold „open“: -

Generation:

High-speed call values : 7 points (fix) in 25 % steps

Linear steps and ramps : ✓

User-defined signal output characteristic: -

Editable units: -

Measurement:

User-defined measuring input characteristic : -

Editable units : -

Measured value min. / max. : -

Measured value hold function : -

Averaging function : -

Features:

Sensor connection : 4 safety sockets (1 channel) incl. 2 sets with safety instrument leads (4 mm) and alligator clips

Power supply : 3 x 1.5 V AA battery; Operating time approx. 20 h

PC Interface : -

Operator guidance : Keypad

Display : Multifunction display LCD, 5½ digit

Housing:

Version : ABS plastic with protective cover

Dimensions : 200 x 100 x 40 mm (H x W x D)

Weight : Approx. 550 g
