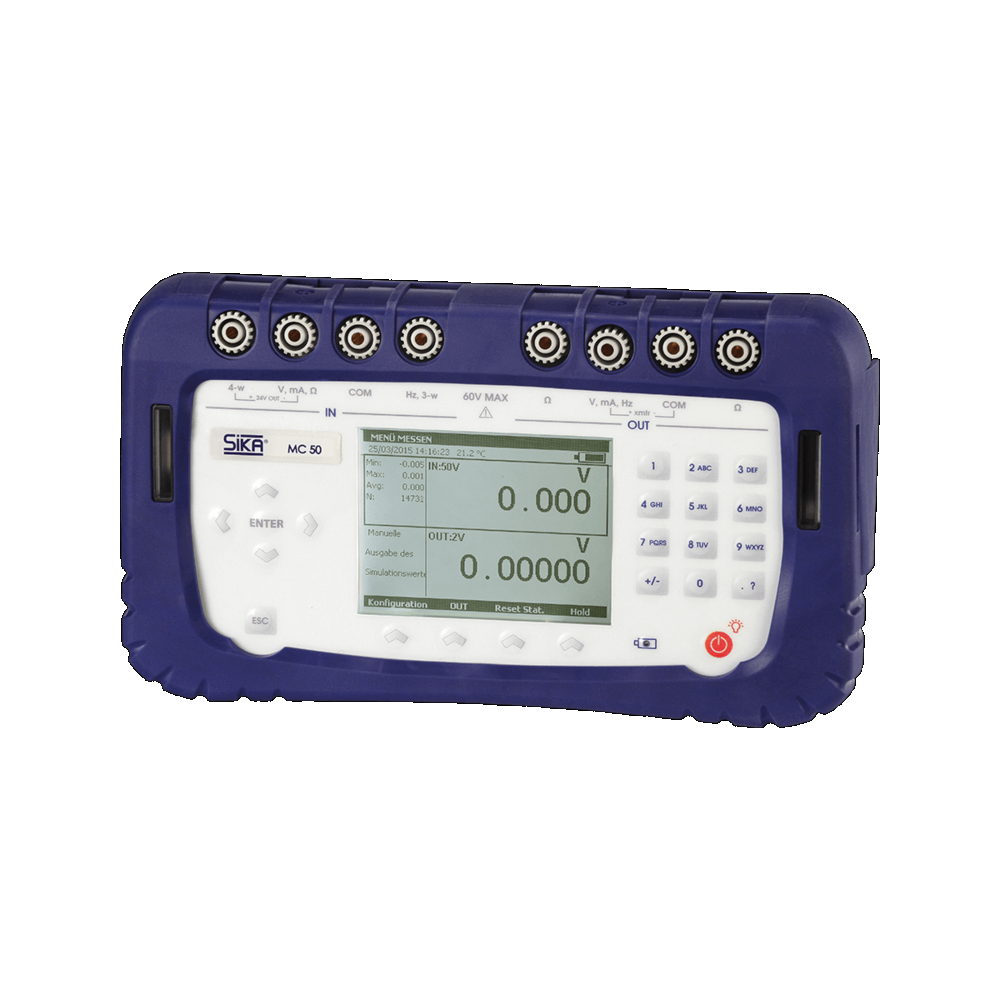

Sika MC 50.2 Multifunction process calibrator

Resistance thermometers (RTD):

Generation and measurement of RTD signals : Pt50, Pt100, Pt200, Pt500, Pt1000, Cu10, Cu50, Ni100, Ni120, Ni1000

Ω-generator function : 0...4000 Ω

Ω-measurement function : 0...4000 Ω

Accuracy (of reading + const.) : ±0.012 %

Selectable temperature unit : °C / °F

Measurement of multi-wire connections 2: / 3 / 4

Thermocouples (TC):

Generation and measurement of TC signals : J, K, T, R, S, B, N, E, U, L

mV-generator function : 0...100 mV

mV-measurement function : 0...100 mV

Accuracy (of reading + const.) : ±0.013 %

Selectable temperature unit : °C / °F

Internal comparison point : ±0.3 °C

Current (mA):

Loop current signal generation : 0(4)...24 mA

Loop current signal measurement : 0(4)...50 mA

Accuracy (of reading + const.) : ±0.0175 %

Current loop supply : 24 V ±10 %, 22 mA

HART Communication protective resistor : 250 Ω

Voltage (V):

Voltage signal generation: 0...20 V

Voltage signal measurement : 0...50 V

Accuracy (of reading + const.): ±0.015 %

Continuity (O/C):

Continuity measurement : O / C

Switching threshold „open“ : 1 kΩ

Frequency and pulse (Hz):

Frequency and pulse signal generation : 0.01 Hz...10 kHz

Frequency and pulse signal measurement : 0.01 Hz...20 kHz

Accuracy (of reading + const.) : ±0.005 %

General data:

Features:

Sensor connection : 4 safety sockets (1 channel) incl. 2 sets with safety instrument leads (4 mm) and alligator clips

Power supply : Rechargeable battery including power adapter, 230 VAC / 12 VDC

Operator guidance : Menu with pull-down windows; Separate channels for parallel signal processing

Display : Multifunction display, double-LCD, 2 x 6 digit, illuminated

Housing:

Version : ABS plastic with protective cover

Dimensions : 110 x 210 x 50 mm (H x W x D)

Weight : Approx. 900 g
